FG761_0103

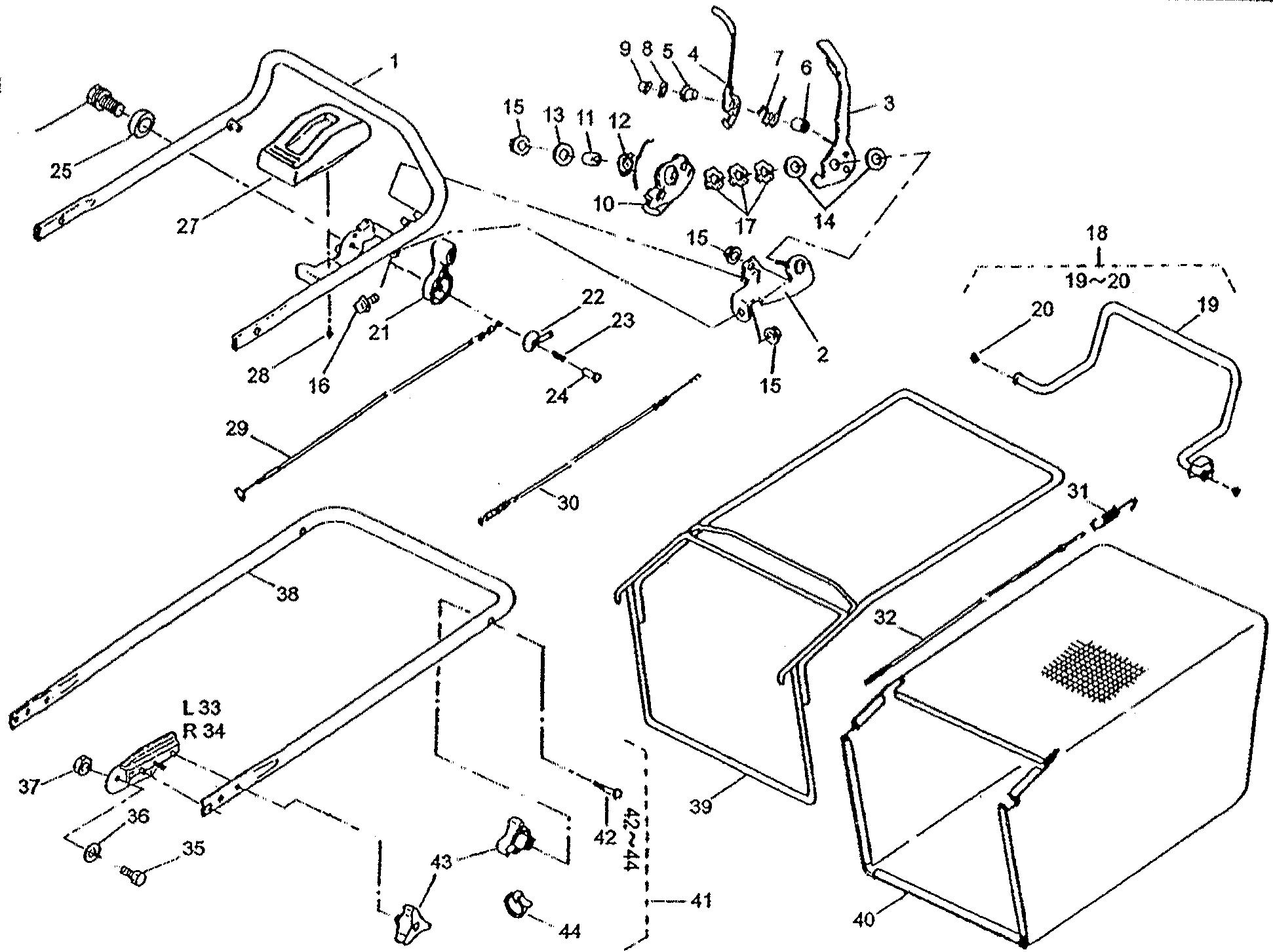

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	51027-242	HANDLE 51027-222	£135.12	Add
002	11113-396-09	STAY	£17.39	Add
003	11095-160-09	LEVER	£33.14	Add
004	11095-161-09	LEVER	£21.48	Add
005	76007-131	BUSH	£2.15	Add
006	61024-206	SPACER	£3.56	Add
007	68013-334	SPRING	£4.11	Add
008	68036-198	WASHER	£2.21	Add
009	5631-0600	U-HEXAGONCAPNUT	N/A	POA
010	11109-108	LINK	£21.48	Add
011	61024-2071	SPACER	N/A	POA
012	68013-335	SPRING	£5.20	Add
013	68036-262	WASHER	£2.33	Add
014	68036-200	WASHER	£2.21	Add
015	569L-0800	FLANGE NYLON NUT	£3.30	Add
016	335L-0820	FLANGE BOLT	£4.03	Add
017	664J-1600	WAVE SPRING WASHER	N/A	POA
018	71161-111-09	LEVER ASSY	£46.58	Add
020	76007-131	BUSH	£2.15	Add
021	91010-169	THROTTLE LEVER	£15.71	Add
022	61003-113	THRUST PLATE	£3.42	Add
023	68013-160	SPRING	£3.31	Add
024	31058-107	HEXAGON NUT	£6.80	Add
025	68036-125	WASHER	£1.85	Add
026	318L-0612	(+)HEXAGON BOLT(SW)	N/A	POA
027	71900-691	COVER ASSY	£21.06	Add
028	470L-0514	(+)TAPPING SCREW	N/A	POA
029	91001-233	THROTTLE WIRE	£17.90	Add
030	91003-144	CONTROL CABLE	£19.06	Add
031	68013-183	SPRING	£10.00	Add
032	91003-150	DRIVE CABLE	£20.56	Add
033	51116-145	HANDLE BRACKET LEFT	£32.07	Add
034	51116-146	HANDLE BRACKET	£31.17	Add
035	312M-0830	HEXAGON BOLT(SW)	£3.47	Add
036	68036-101	WASHER	£2.50	Add
037	512L-0800	HEXAGON NUT	N/A	POA
038	51027-146	HANDLE	£111.93	Add
039	11062-195-09	FRAME	£92.13	Add
040	36098-142	GRASS BAG C.P.	£154.17	Add
041	71052-119	BOLT SET	£31.53	Add
042	31057-134	BOLT	£4.55	Add
043	36061-118	KNOB	£7.63	Add
044	68028-103	WIRE BAND	£2.15	Add
