FG761_0105

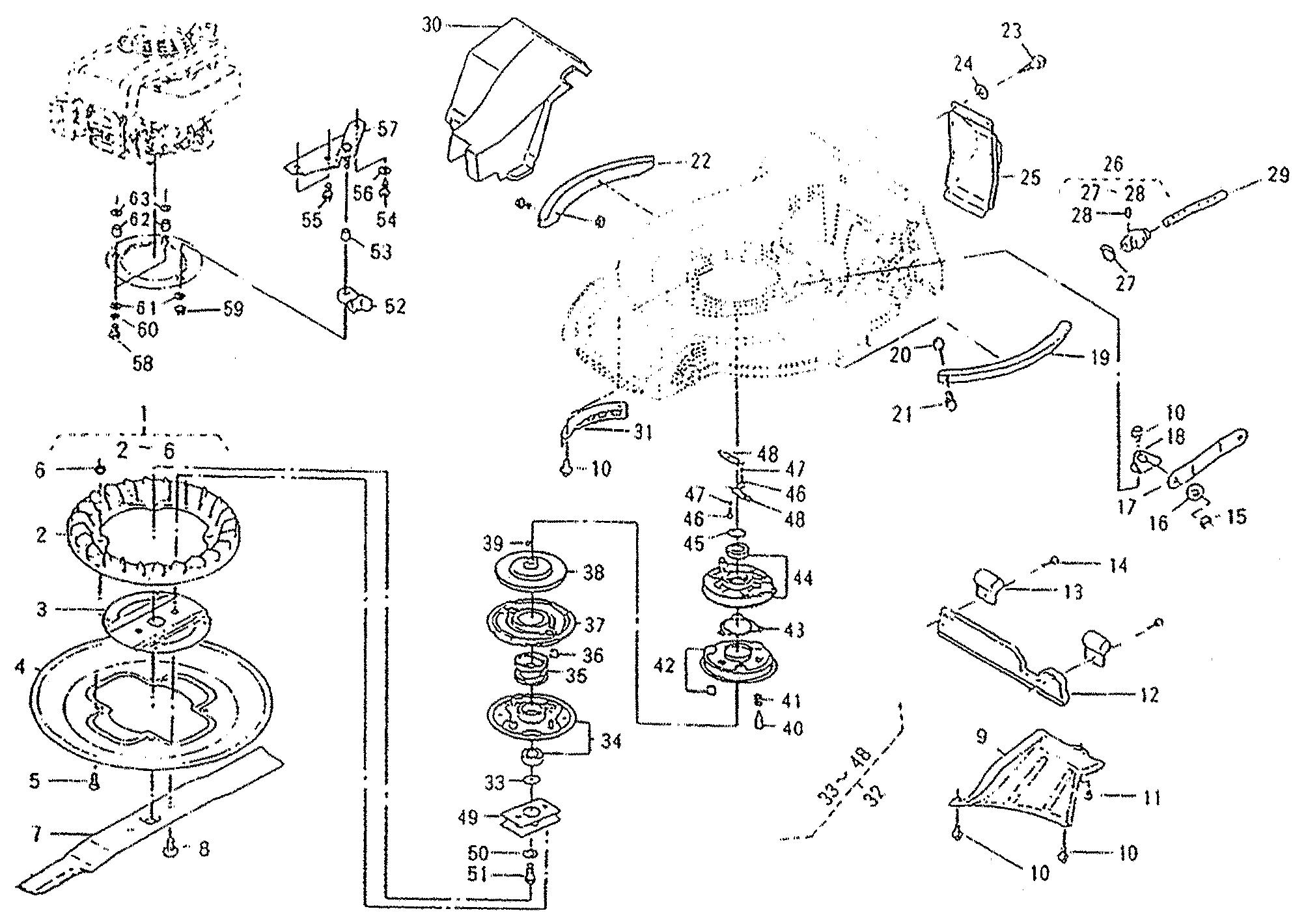

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	71082-104	FAN ASS'Y	£63.84	Add
002	51125-103	FAN	£22.05	Add
003	11102-151	HOLDER	£18.75	Add
004	36065-196	COVER	£20.40	Add
005	335L-0620	FLANGE BOLT M6x20	£2.86	Add
006	569L-0600	FLANGE NYLON NUT M6	£2.66	Add
007	91014-209	BLADE	£36.69	Add
008	31057-220	BOLT	£3.02	Add
009	36065-200	COVER	£14.28	Add
010	312L-0816	HEXAGON BOLT	£2.21	Add
011	377L-0812	(+)BINDING SCREW	£2.45	Add
012	36046-122	SAFETY GUARD	£16.75	Add
013	11012-126	HANGER BAND	£6.32	Add
014	335L0616	FLANGE BOLT	£2.27	Add
015	816V-0800	E-SNAP RING	N/A	POA
016	611L-1000	WASHER M10	N/A	POA
017	91049-119	NO LONGER AVAILABLE	N/A	POA
018	11006-123	STAY C.P.	£12.12	Add
019	51090-107-09	PROTECTOR	£15.25	Add
020	512L-0600	HEXAGON NUT	N/A	POA
021	335L-0610	FLANGE BOLT M6x10	N/A	POA
022	51090-108	PROTECTOR	N/A	POA
023	470L-0514	(+)TAPPING SCREW	N/A	POA
024	68036-159	WASHER	£2.15	Add
025	36065-179	COVER	£9.40	Add
026	91097-101	UNIVERSAL JOINT	£33.14	Add
027	812V-2000	C-SNAP RING FOR SHAFT	£2.17	Add
028	717B0418	PARALLEL PIN	£2.86	Add
029	64014-244	SHAFT	£8.30	Add
030	36065-195	COVER	£20.65	Add
031	36065-180	COVER	£8.59	Add
032	71067106	BRAKE ASS'Y	N/A	POA
033	L90409952000	WASHER	N/A	POA
034	L72600VA4010	BLADE HOLDER ASS'Y	N/A	POA
035	L75183VA3J000	CLUTCH SPRING	N/A	POA
036	L72613VA4000	BLADE HOLDER BUSH	N/A	POA
037	L75150VA3J01	DRIVEN DISK C.P.	N/A	POA
038	L75130VA4000	DRIVE DISK	N/A	POA
039	L9440116150	WOODRUFF KEY	N/A	POA
040	L90021VA4000	SPECIAL BOLT	N/A	POA
041	L75132VA4000	BRAKE HOLDER SPRING	N/A	POA
042	L75100VA4010	BRAKE C.P.	N/A	POA
043	L75110VA4000	BALL RETAINER	N/A	POA
044	L75090VA4020	BALL CONTROL PLATE	N/A	POA
045	L90501952010	THRUST WASHER	N/A	POA
046	L90014952000	FLANGE BOLT	N/A	POA
047	L19512883000	FAN COLLAR	N/A	POA
048	L75182VA3J001	CLUTCH RETURN SPRING	N/A	POA
049	61024-169	SPACER	£11.31	Add
050	671V1000	CONICAL SPRING WASHER	£2.27	Add
051	31057-196	HEXAGON BOLT	£3.31	Add
052	51002-106	WIRE HOLDER	£20.65	Add
053	61024-185	SPACER	£4.11	Add
054	31057-204	HEXAGON BOLT	£3.42	Add
055	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
056	671V-0800	CONICAL SPRING WASHER M8	N/A	POA
057	71226-111	BRACKET C.P.	£21.78	Add
058	31057-243	BOLT	£2.73	Add
059	569L-0800	FLANGE NYLON NUT	£3.30	Add
060	661L-0800	SPRING LOCK WASHER M8	N/A	POA
061	613L-0800	PLAIN WASHER M8	N/A	POA
062	61024-142	SPACER	£2.01	Add
063	68036-158	WASHER	£2.42	Add
