FG761_0114

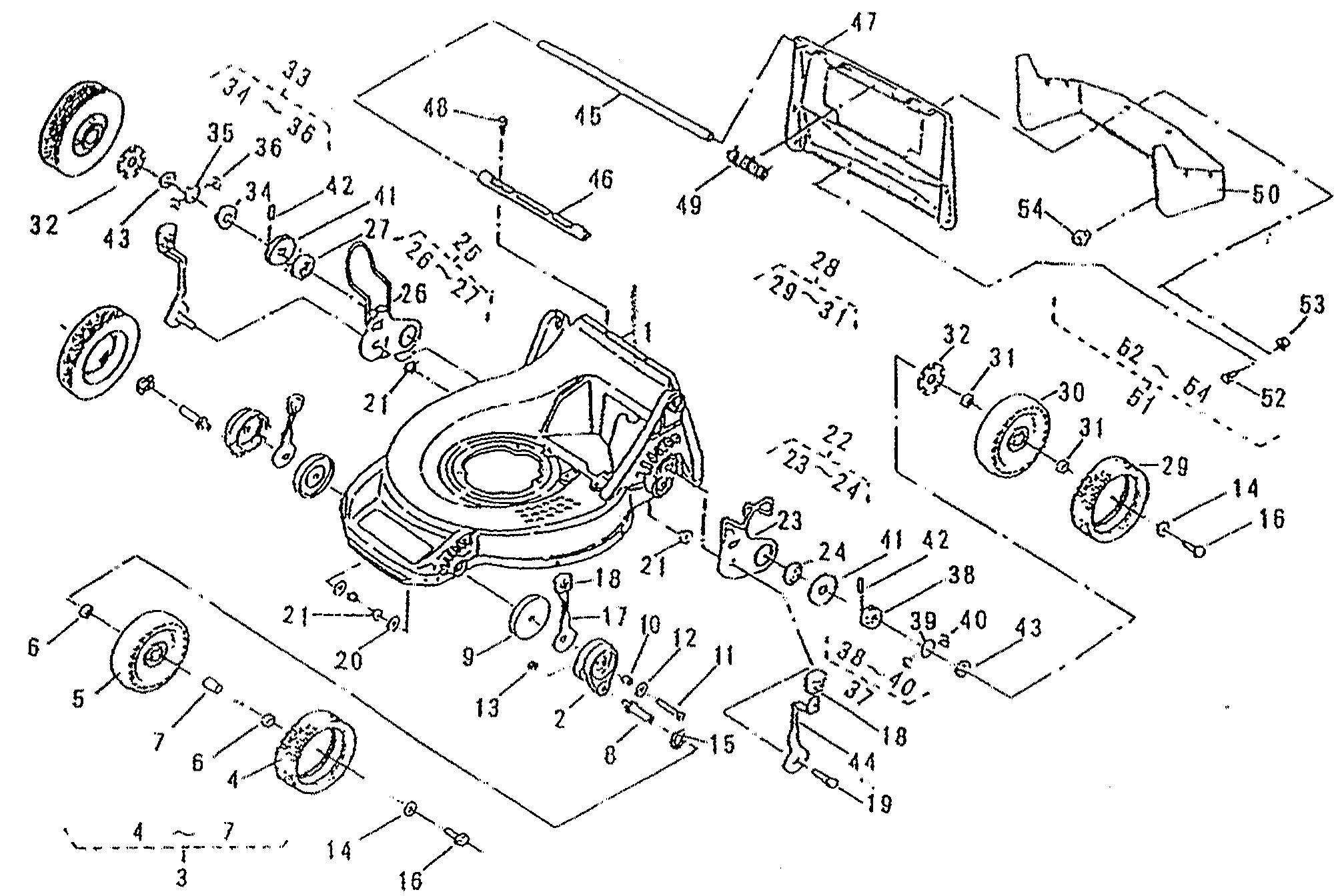

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG761_0114

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71950-182-42 NO LONGER AVAILABLE N/A POA
002 71950-209 ADJUSTER £72.29 Add
003 71041-135 WHEEL ASS'Y (A.W.) £100.70 Add
004 91086-113 TIRE £30.30 Add
008 64014-332 SHAFT 64014-294 £16.75 Add
009 11102-221 HOLDER £24.06 Add
010 11083-312 COLLAR £6.81 Add
011 311L-0850 HEXAGON BOLT M8X50 £2.78 Add
012 68036-101 WASHER £2.50 Add
013 572L-0800 NYLON NUT £3.56 Add
014 68036-101 WASHER £2.50 Add
015 664V0016 WAVE SPRING WASHER £1.80 Add
016 31057-181 HEXAGON BOLT £2.55 Add
017 11150-101-09 ADJUST.LEVER £11.80 Add
018 36061-121 KNOB £5.62 Add
019 31057-132 HEXAGON BOLT £5.99 Add
020 68036-112 WASHER £2.54 Add
021 569L-0800 FLANGE NYLON NUT £3.30 Add
022 71122-101 ADJUSTER ASS'Y £24.59 Add
023 11142-104 ADJUSTER £19.47 Add
024 945L-0349 BEARING £12.77 Add
025 71122-102 ADJUSTER ASS'Y £24.59 Add
026 11142-105 ADJUSTER (RED) £19.47 Add
027 945L-0349 BEARING £12.77 Add
028 71041-136 WHEEL ASS'Y (A.W.) £96.76 Add
029 91086-113 TIRE £30.30 Add
032 11086-119 STOPPER £12.90 Add
033 71158-104 RATCHET ASS'Y £14.47 Add
034 11102-235 HOLDER £9.62 Add
035 68013-266 SPRING £3.80 Add
036 31034-170 PIN £3.33 Add
037 71158-103 RATCHET ASS'Y 71158-102 £14.47 Add
038 11102-235 HOLDER £9.62 Add
039 68013-266 SPRING £3.80 Add
040 31034-170 PIN £3.33 Add
041 61003-112 THRUST PLATE £5.99 Add
042 31034-137 PIN £3.32 Add
043 68036-146 WASHER £2.00 Add
044 11150-102-09 ADJUT.LEVER £12.66 Add
045 64014-234 SHAFT £4.52 Add
046 11113-292 STAY £8.99 Add
047 36068-171-46 GUARD £59.89 Add
048 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
049 68013-336 SPRING £7.63 Add
050 360651-298-09 COVER N/A POA
051 71137-194 BOLT AND NUT SET £6.93 Add
052 376L-0508 (+)TRUSS SCREW M5x8 £1.98 Add
053 579L-0500 FLANGE NUT M5 £2.08 Add
054 36006-113 ABSORBER M5 £2.54 Add
