FG761_0115

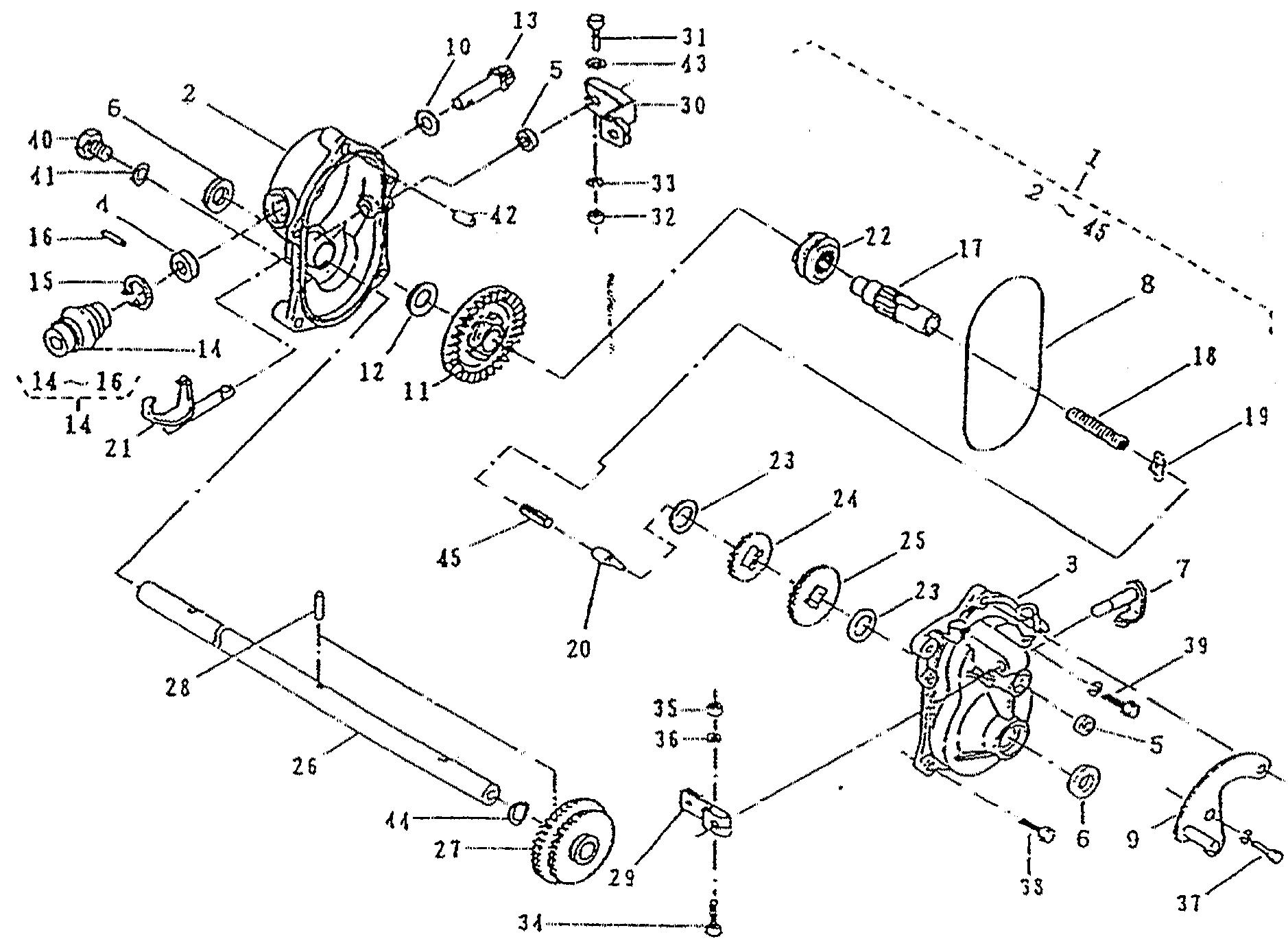

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG761_0115

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71008-275 GEAR CASE ASS'Y £343.80 Add
002 51001-195 GEAR CASE £70.61 Add
003 51001-196 GEAR CASE £70.61 Add
004 61002-161 OIL SEAL £3.19 Add
005 61002-162 OIL SEAL £2.42 Add
006 61002-163 OIL SEAL £2.73 Add
007 64024-104 SHIFTER SHAFT £7.09 Add
008 214B-11000 O-RING £5.64 Add
009 11006-165 STAY C.P. £11.58 Add
010 61003-109 THRUST PLATE £2.55 Add
011 71950-206 BEVEL GEAR £53.58 Add
012 61024-117 SPACER £2.42 Add
013 71950-206 BEVEL GEAR £53.58 Add
014 91097-101 UNIVERSAL JOINT £33.14 Add
015 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
016 717B0418 PARALLEL PIN £2.86 Add
017 64014-236 SHAFT £33.08 Add
018 68013-262 SPRING £3.32 Add
019 31034-199 PIN £5.28 Add
020 64014-235 SHAFT £7.09 Add
021 11097-120 SHIFTER FORK £22.04 Add
022 11129-107 CLUTCH £24.33 Add
023 61024-118 SPACER £2.98 Add
024 78004-156 GEAR £20.65 Add
025 78004-155 GEAR £15.92 Add
026 64014-163 SHAFT £33.62 Add
027 78012-107 GEAR CP. £43.77 Add
028 31034-150 PIN £3.31 Add
029 11104-119 ARM (RED) £5.61 Add
030 11104-137 ARM £8.39 Add
031 311M-0630 (+)HEXAGON BOLT (OBSOLETE) N/A POA
032 571L-0600 HEXAGON NUT FLANGE (OBSOLETE) N/A POA
034 320L-0525 (HEXAGON BOLT(W/PW) M5x25 (OBSOLETE) N/A POA
035 571L-0500 FLANGE NUT M5 N/A POA
036 611L-0500 PLAIN WASHER M5 N/A POA
037 318L-0612 (+)HEXAGON BOLT(SW) N/A POA
038 315L-0635 (+)HEXAGON BOLT(W/SW.PW) M6x35 N/A POA
039 315L-0625 (+)HEXAGON BOLT(SW.PW) (OBSOLETE) N/A POA
040 31057-126 NO LONGER AVAILABLE N/A POA
041 68001-110 FIBER WASHER £2.15 Add
042 11083-201 COLLAR £3.31 Add
043 611L0600 PLAIN WASHER 611L-0600 £1.66 Add
044 812V-2200 C SNAP RING (RED) £3.24 Add
045 736U-0320 SPRING PIN N/A POA
331 613L-0600 PLAIN WASHER (OBSOLETE) N/A POA
