FG762_0101

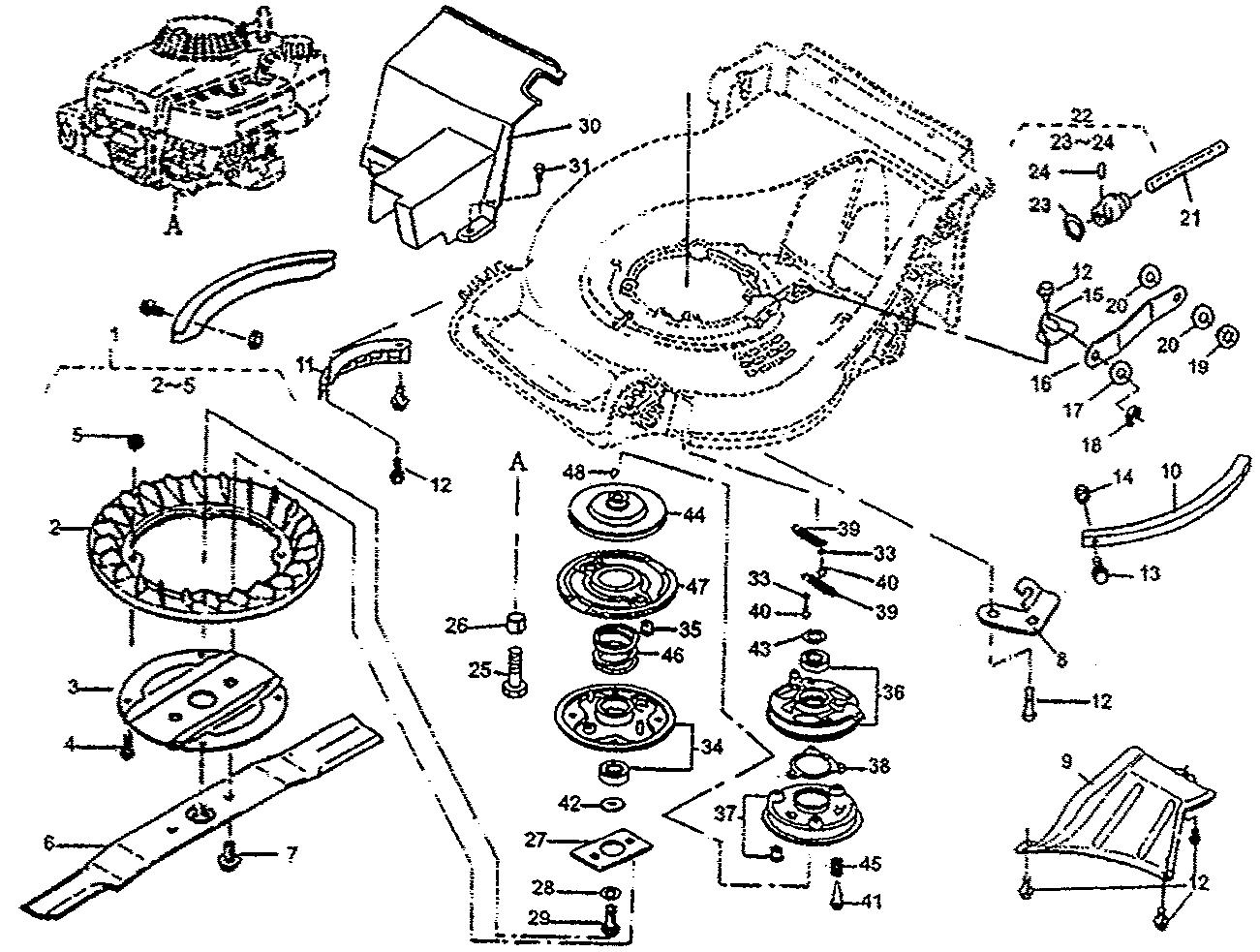

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0101

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71082-111 FAN ASSY £55.77 Add
002 51125-103 FAN £22.05 Add
003 11102-151 HOLDER £18.75 Add
004 31062-169 PRE-COAT LOCK BOLT £2.47 Add
005 579L-0600 FLANGE NUT N/A POA
006 91014-16S BLADE N/A POA
007 31057-197 HEXAGON BOLT £3.96 Add
008 51002-118 WIRE HOLDER £5.20 Add
009 36065-400 COVER £15.66 Add
010 51090-128-09 PROTECTOR £10.20 Add
011 36065-180 COVER £8.59 Add
012 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
013 335L0616 FLANGE BOLT £2.27 Add
014 512L-0600 HEXAGON NUT N/A POA
015 11006-113 STAY £10.48 Add
016 91049-126 CONNECTOR £16.31 Add
017 611L-1000 WASHER M10 N/A POA
018 816V-0800 E-SNAP RING N/A POA
019 576V-1000 PUSH NUT N/A POA
020 68001-110 FIBER WASHER £2.15 Add
021 64014-240 SHAFT £4.52 Add
022 91097-101 UNIVERSAL JOINT £33.14 Add
023 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
024 717B0418 PARALLEL PIN £2.86 Add
025 310S7-243 HEXAGON BOLT N/A POA
026 61024-142 SPACER £2.01 Add
027 61024-208 SPACER £11.08 Add
028 671V1000 CONICAL SPRING WASHER £2.27 Add
029 31057-196 HEXAGON BOLT £3.31 Add
030 36065-398 COVER £21.60 Add
031 342L-0616 FLANGE BOLT TAPPING £3.39 Add
032 71067-106 BRAKE ASSY £359.23 Add
033 19512-883-000 FAN COLLAR N/A POA
034 72600-VA4-010 BLADE HOLDER ASSY £115.64 Add
035 72613-VA4-000 BLADE HOLDER BUSH £5.11 Add
036 75030-VA4-030 BALL CONTROL PLATE N/A POA
037 7S1O0-VA4-010 BRAKE C.P. N/A POA
038 75110-VA4-000 BALL RETAINER C.P. £9.31 Add
039 75182-VA3-000 CLUTCH RETURN SPRING N/A POA
040 90014-952-000 FLANGE BOLT £4.46 Add
041 90021-VA4-000 SPECIAL BOLT £6.04 Add
042 90409-952-000 WASHER £5.21 Add
043 90501-852-010 THRUST WASHER N/A POA
044 75130-VA4-000 DRIVE DISK £62.21 Add
045 75132-VA4-000 BRAKE HOLDER SPRING £4.31 Add
046 75163-VA3-J00 CLUTCH SPRING N/A POA
047 75150-VA3-J01 DRIVEN DISK C.P. £106.65 Add
048 94401-16150 NO LONGER AVAILABLE N/A POA
