FG762_0106

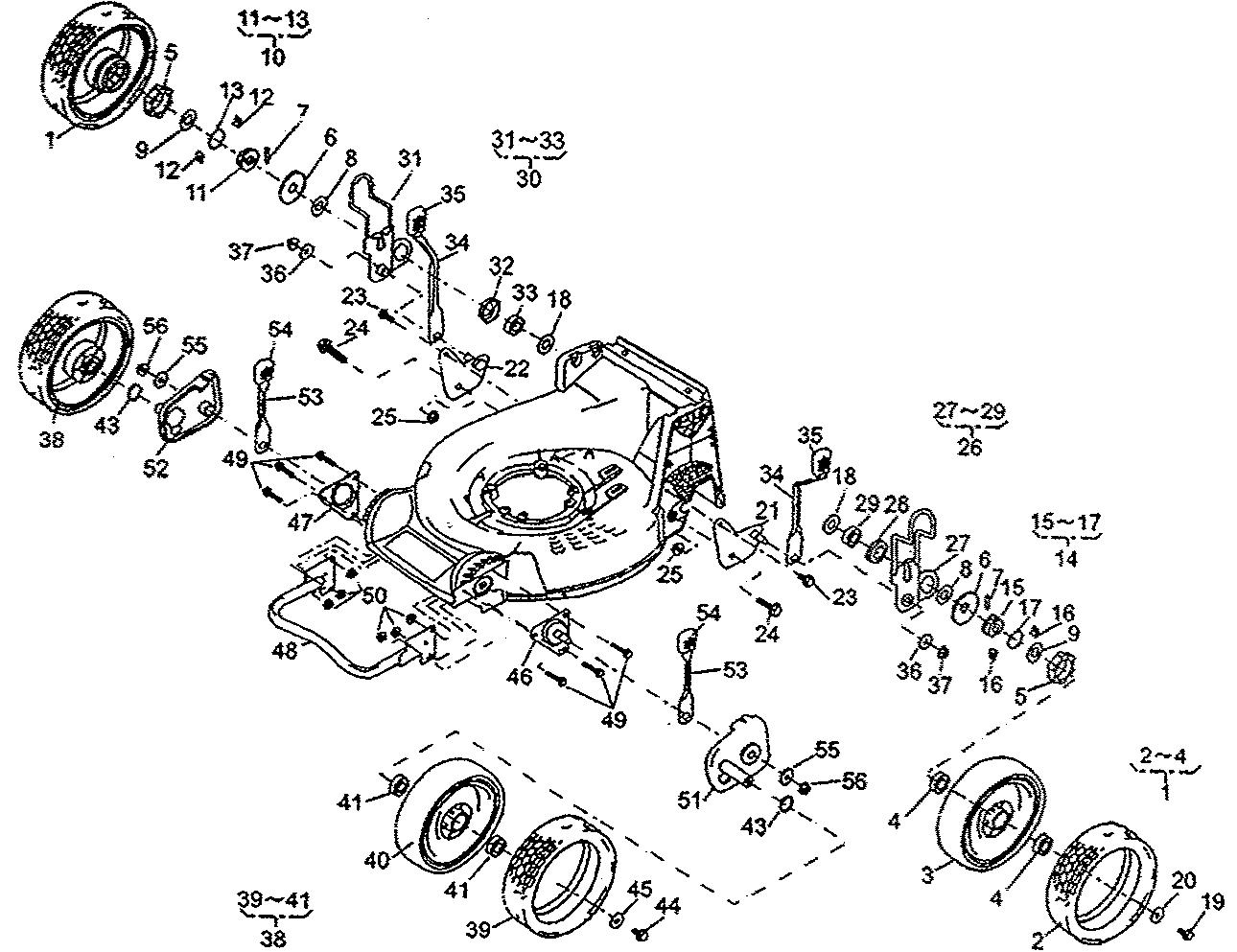

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	51043-147	HOUSING	N/A	POA
002	36068-203	GUARD (OBSOLETE) (OBSOLETE)	N/A	POA
003	51090-117-09	PROTECTOR	£10.20	Add
003	91049-129	CONNECTOR	£7.09	Add
004	335L0616	FLANGE BOLT	£2.27	Add
005	512L-0600	HEXAGON NUT	N/A	POA
006	36065-180	COVER	£8.59	Add
007	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
008	38065-436	COVER	N/A	POA
009	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
010	11006-155	STAY C.P	£7.63	Add
011	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
012	11113-407	STAY	£3.82	Add
013	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
014	11113-292	STAY	£8.99	Add
015	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
016	36068-196-46	GUARD	£41.46	Add
017	36080-149	RUBBER SHEET	£3.56	Add
018	64014-324	SHAFT	£5.74	Add
019	68013-336	SPRING	£7.63	Add
020	71082-111	FAN ASSY	£55.77	Add
021	51125-103	FAN	£22.05	Add
022	11102-151	HOLDER	£18.75	Add
023	31062-169	PRE-COAT LOCK BOLT	£2.47	Add
024	579L-0600	FLANGE NUT	N/A	POA
025	61024-208	SPACER	£11.08	Add
026	91014-205	BLADE	£35.57	Add
027	31057-197	HEXAGON BOLT	£3.96	Add
028	31057-243	BOLT	£2.73	Add
029	61024-142	SPACER	£2.01	Add
030	71087-106	BRAKE ASSY	N/A	POA
031	31057-196	HEXAGON BOLT	£3.31	Add
032	671V1000	CONICAL SPRING WASHER	£2.27	Add
033	91097-101	UNIVERSAL JOINT	£33.14	Add
034	812V-2000	C-SNAP RING FOR SHAFT	£2.17	Add
036	64014-339	SHAFT	£10.41	Add
038	68036-280	WASHER	£2.15	Add
039	816V-0800	E-SNAP RING	N/A	POA
03S	717B0418	PARALLEL PIN	£2.86	Add
040	36065-438	COVER	£43.86	Add
041	342L-0616	FLANGE BOLT TAPPING	£3.39	Add
042	51116-149	HANDLE BRACKET(L)	£36.18	Add
043	51116-150	HANDLE BRACKET(R)	£36.18	Add
044	31057-255	BOLT	£2.49	Add
045	512L-0800	HEXAGON NUT	N/A	POA
046	11113-408	STAY	£4.48	Add
047	512L-0800	HEXAGON NUT	N/A	POA
048	31057-181	HEXAGON BOLT	£2.55	Add
049	342L-0612	FLANGE BOLT TAPPING 342J-0612	£2.81	Add
050	71008-431	GEAR CASE ASSY	£564.72	Add
051	36046-150	SAFETY GUARD	£16.98	Add
052	11012-126	HANGER BAND	£6.32	Add
053	711V-0522	SPRING PIN (OBSOLETE) (OBSOLETE)	N/A	POA
054	569L-0600	FLANGE NYLON NUT M6	£2.66	Add
055	122039	ENGINE.HONDA GXV160H2-SFL1-R280	N/A	POA
