FG762_0118

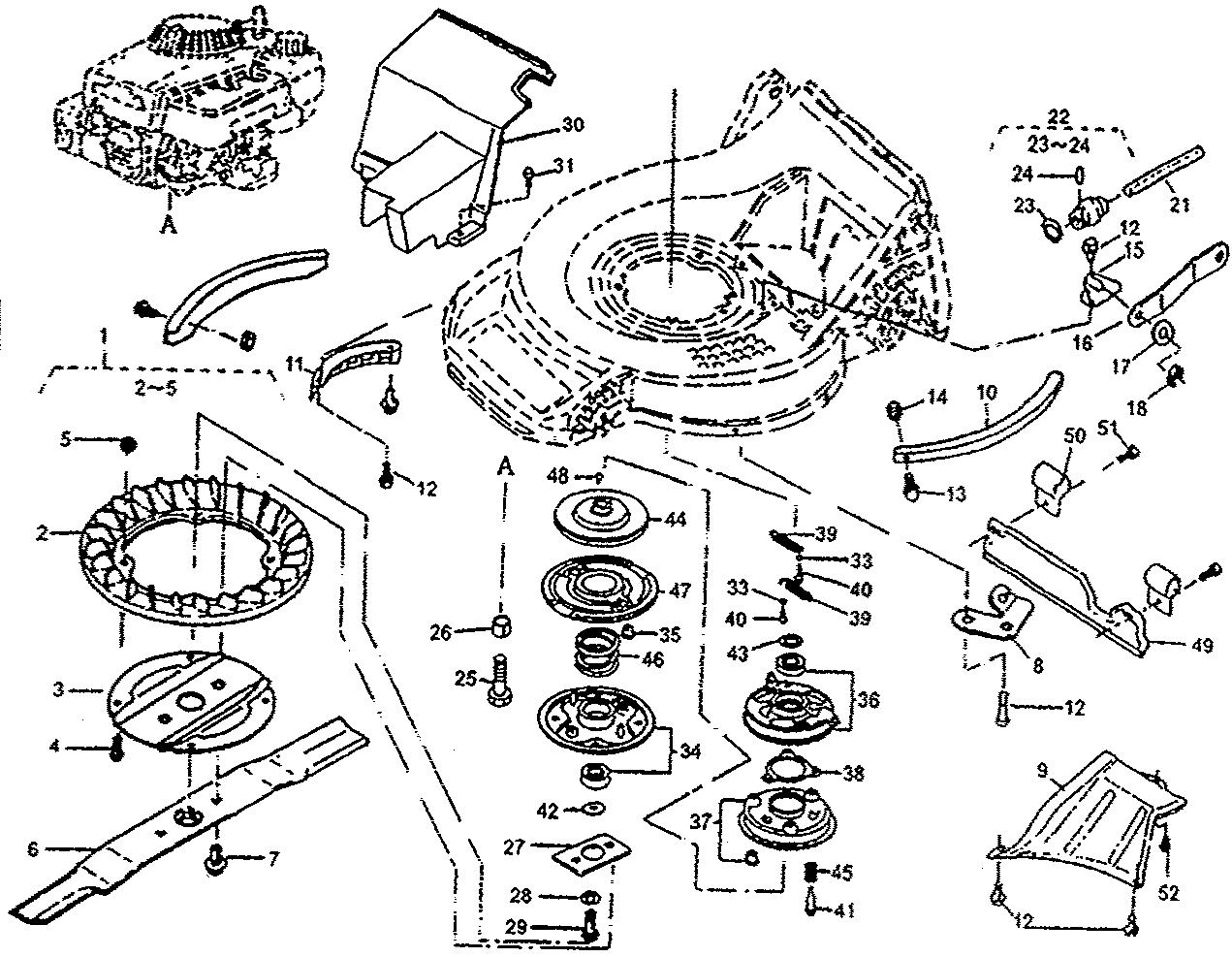

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0118

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71082-110 FAN ASS'Y £44.68 Add
002 51125-103 FAN £22.05 Add
003 11102-151 HOLDER £18.75 Add
003 75090-VA4-030 BALL CONTROL PLATE £101.97 Add
004 335L-0620 FLANGE BOLT M6x20 £2.86 Add
005 S69L-0600 FLANGE NYLON NUT N/A POA
006 91014-205 BLADE £35.57 Add
007 31057-197 HEXAGON BOLT £3.96 Add
008 51002-118 WIRE HOLDER £5.20 Add
009 36065-300 COVER £27.44 Add
010 510S0-117-09 PROTECTOR N/A POA
011 36065-180 COVER £8.59 Add
012 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
013 335L-0610 FLANGE BOLT M6x10 N/A POA
014 512L-0600 HEXAGON NUT N/A POA
015 11006-113 STAY £10.48 Add
016 91049-127 CONNECTOR £19.83 Add
017 6111-1000 WASHER N/A POA
018 816V-0800 E-SNAP RING N/A POA
021 64014-334 SHAFT £7.09 Add
022 91097-101 UNIVERSAL JOINT £33.14 Add
023 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
024 717B0418 PARALLEL PIN £2.86 Add
025 31057-243 BOLT £2.73 Add
026 61024-142 SPACER £2.01 Add
027 61024-169 SPACER £11.31 Add
028 671V1000 CONICAL SPRING WASHER £2.27 Add
029 31057-196 HEXAGON BOLT £3.31 Add
030 36065-397 COVER 36065-299 £19.06 Add
031 342L-0616 FLANGE BOLT TAPPING £3.39 Add
032 71067-106 BRAKE ASSY £359.23 Add
033 19512-883-000 FAN COLLAR N/A POA
034 72600-VA4-010 BLADE HOLDER ASSY £115.64 Add
035 72613-VA4-000 BLADE HOLDER BUSH £5.11 Add
037 75100-VA4-010 BRAKE C.P. £87.10 Add
038 75110-VA4-000 BALL RETAINER C.P. £9.31 Add
039 75182-VA3-J00 CLUTCH RETURN SPRING £6.78 Add
040 90014-952-000 FLANGE BOLT £4.46 Add
041 90021-VA4-000 SPECIAL BOLT £6.04 Add
042 90409-952-000 WASHER £5.21 Add
043 90501-952-010 THRUST WASHER £6.67 Add
044 75130-VA4-000 DRIVE DISK £62.21 Add
045 75132-VA4-000 BRAKE HOLDER SPRING £4.31 Add
046 75183-VA3-J00 CLUTCH SPRING £8.73 Add
047 75150-VA3-J01 DRIVEN DISK C.P. £106.65 Add
048 94401-16160 WOOO RUFF KEY N/A POA
049 36046-147 SAFETY GUARD £61.79 Add
050 11012-126 HANGER BAND £6.32 Add
051 335L0616 FLANGE BOLT £2.27 Add
052 342J-0610 FLANGE BOLT TAPPING M6x10 N/A POA
