FG762_0119

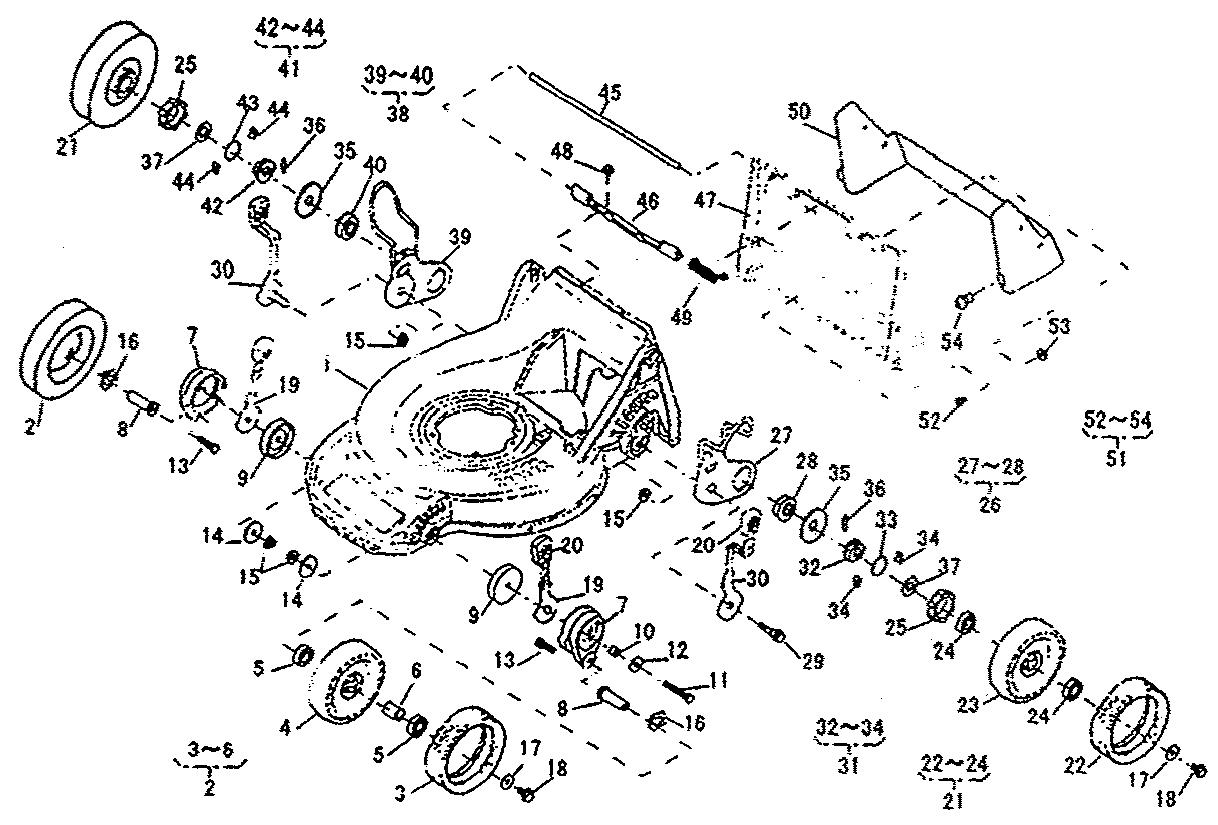

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0119

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71950-182-42 NO LONGER AVAILABLE N/A POA
002 71041-135 WHEEL ASS'Y (A.W.) £100.70 Add
003 91086-113 TIRE £30.30 Add
003 68036-146 WASHER £2.00 Add
004 36068-171-46 GUARD £59.89 Add
007 11142-133 ADJUSTER £52.00 Add
008 64014-343 SHAFT £16.75 Add
009 11102-221 HOLDER £24.06 Add
010 11083-312 COLLAR £6.81 Add
011 311L-0850 HEXAGON BOLT M8X50 £2.78 Add
012 68036-101 WASHER £2.50 Add
013 31057-258 BOLT £3.31 Add
014 68036-112 WASHER £2.54 Add
015 569L-0800 FLANGE NYLON NUT £3.30 Add
016 664V0016 WAVE SPRING WASHER £1.80 Add
017 68036-101 WASHER £2.50 Add
018 31057-181 HEXAGON BOLT £2.55 Add
019 11150-101-09 ADJUST.LEVER £11.80 Add
020 36061-121 KNOB £5.62 Add
021 71041-136 WHEEL ASS'Y (A.W.) £96.76 Add
022 91086-113 TIRE £30.30 Add
025 11066-11S STOPPER N/A POA
026 71122-101 ADJUSTER ASS'Y £24.59 Add
027 11142-104 ADJUSTER £19.47 Add
028 945L-0349 BEARING £12.77 Add
029 31057-132 HEXAGON BOLT £5.99 Add
030 11150-102-09 ADJUT.LEVER £12.66 Add
031 71158-103 RATCHET ASS'Y 71158-102 £14.47 Add
032 11102-235 HOLDER £9.62 Add
033 68013-266 SPRING £3.80 Add
034 31034-170 PIN £3.33 Add
036 31034-137 PIN £3.32 Add
038 71122-102 ADJUSTER ASS'Y £24.59 Add
039 11142-105 ADJUSTER (RED) £19.47 Add
03S 61003-112 THRUST PLATE £5.99 Add
040 945L-0349 BEARING £12.77 Add
041 71158-104 RATCHET ASS'Y £14.47 Add
042 11102-235 HOLDER £9.62 Add
043 68013-266 SPRING £3.80 Add
044 31034-170 PIN £3.33 Add
045 64014-234 SHAFT £4.52 Add
046 11113-292 STAY £8.99 Add
048 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
049 68013-336 SPRING £7.63 Add
050 36065-298-09 COVER £31.41 Add
051 71137-194 BOLT AND NUT SET £6.93 Add
052 376L-0508 (+)TRUSS SCREW M5x8 £1.98 Add
053 579L-0500 FLANGE NUT M5 £2.08 Add
064 36006-113 ABSORBER M5 £2.54 Add
