FG762_0121

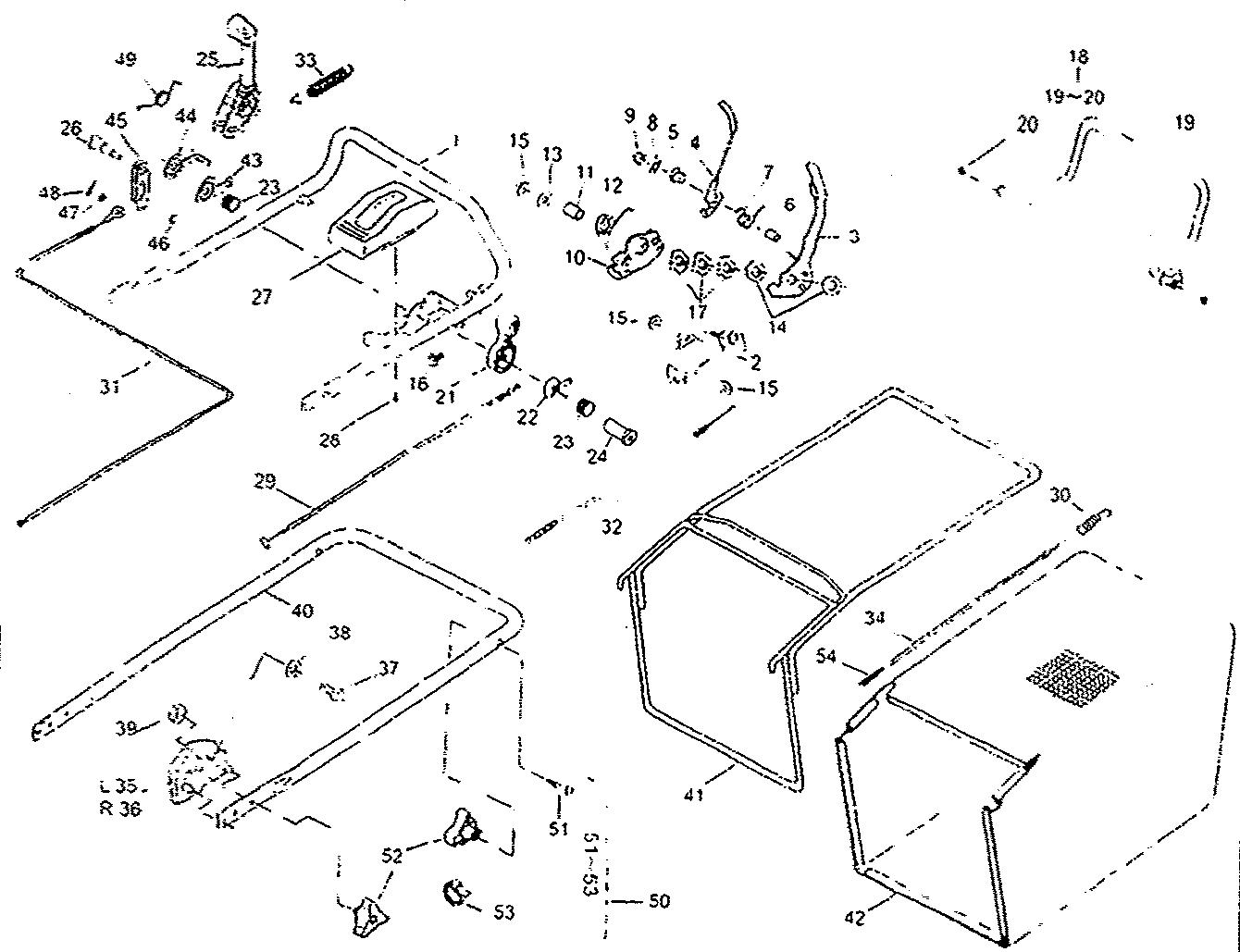

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0121

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027-242 HANDLE 51027-222 £135.12 Add
002 11113-396-09 STAY £17.39 Add
003 11095-150-09 LEVER N/A POA
004 11095-161-09 LEVER £21.48 Add
005 76007-131 BUSH £2.15 Add
006 61024-206 SPACER £3.56 Add
007 68013-334 SPRING £4.11 Add
008 68035-198 WASHER N/A POA
009 563L-0500 U-HEXAGON CAP NUT N/A POA
010 11109-108 LINK £21.48 Add
011 51024-207 SPACER N/A POA
012 58013-335 SPRING N/A POA
013 68036-262 WASHER £2.33 Add
014 63035-200 WASHER N/A POA
015 559L-0800 FLANGE NYLON NUT N/A POA
016 335L-0820 FLANGE BOLT £4.03 Add
017 664J-1600 WAVE SPRING WASHER N/A POA
018 71161-111-09 LEVER ASSY £46.58 Add
020 76007-131 BUSH £2.15 Add
021 91010-159 THROTTLE LEVER N/A POA
022 61003-113 THRUST PLATE £3.42 Add
023 68013-356 SPRING £3.31 Add
024 31058-168 NUT £4.77 Add
025 11095-162 HANDLE £14.68 Add
026 31057-249 BOLT £9.80 Add
027 71900-811 COVER ASSY £23.78 Add
028 470L-0514 (+)TAPPING SCREW N/A POA
029 91001-233 THROTTLE WIRE £17.90 Add
030 68013-161 SPRING MOTION DRIVE £6.81 Add
031 91003-167 CONTROL CABLE (HST) £16.16 Add
032 91003-144 CONTROL CABLE £19.06 Add
033 68013-360 SPRING £8.30 Add
034 91003-166 CONTROL CABLE £29.22 Add
035 51116-132 HANDLE BRACKET £25.60 Add
036 51116-133 HANDLE BRACKET £21.78 Add
037 312M-0830 HEXAGON BOLT(SW) £3.47 Add
038 68036-101 WASHER £2.50 Add
039 512L-0800 HEXAGON NUT N/A POA
040 51027-254 LOWER HANDLE £163.19 Add
041 11052-143 FRAME C.P N/A POA
042 36098-141 BAG SHANKS £76.83 Add
043 11049-108 SIDE PLATE £26.49 Add
044 61003-118 THRUST PLATE £27.44 Add
045 71950-203 LINK 11109-109 £11.16 Add
046 31056-128 NO LONGER AVAILABLE N/A POA
047 613L-0600 PLAIN WASHER (OBSOLETE) N/A POA
048 733L-0600 SNAP PIN N/A POA
049 71950-203 LINK 11109-109 £11.16 Add
050 71052-114 BOLT SET N/A POA
051 31057-134 BOLT £4.55 Add
052 36061-118 KNOB £7.63 Add
053 68028-103 WIRE BAND £2.15 Add
054 68013-364 SPRING £3.82 Add
