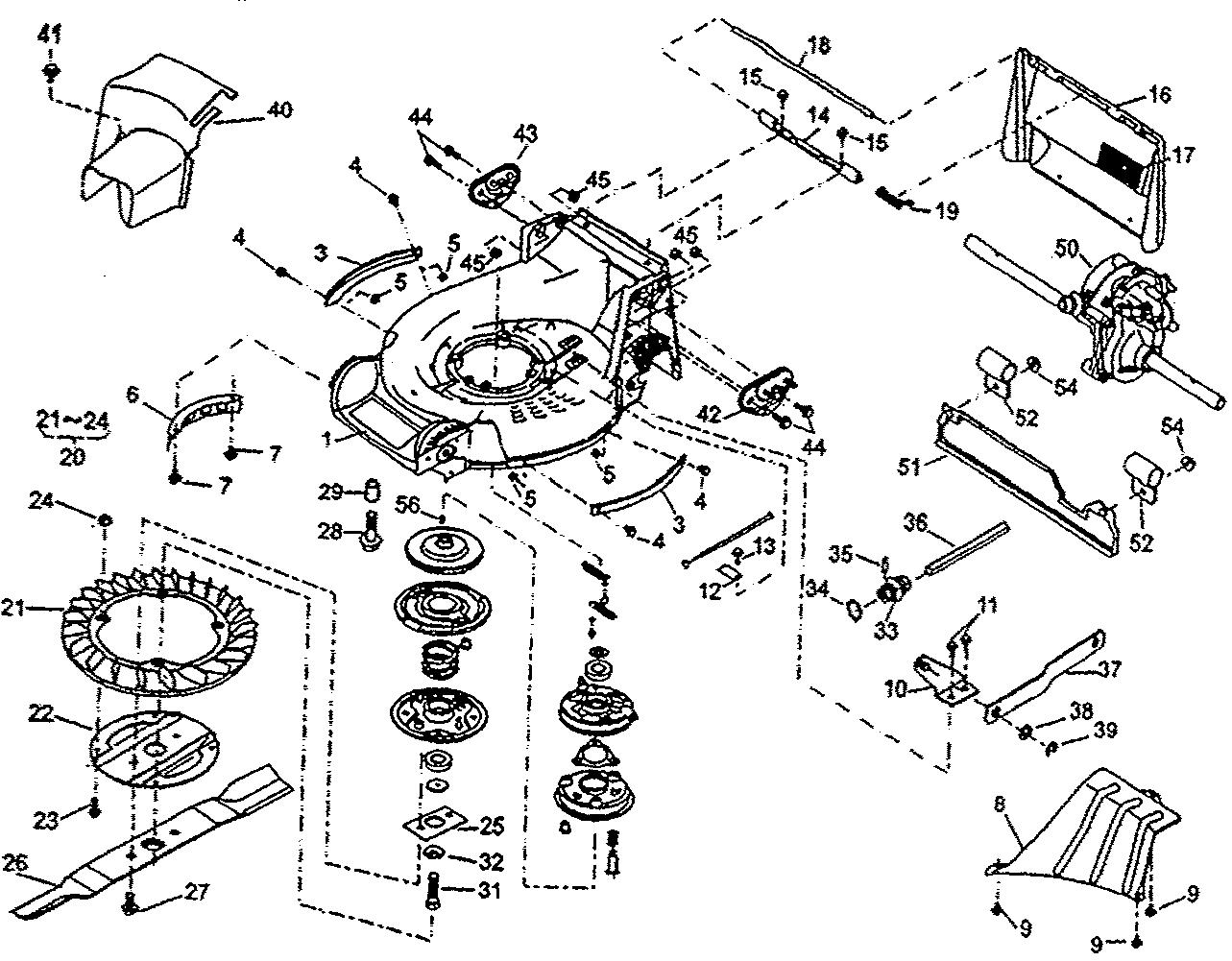

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG762_0114

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51043-151-42 DECK ASSY (553 PRO) £441.64 Add
003 51090-117-09 PROTECTOR £10.20 Add
004 335L0616 FLANGE BOLT £2.27 Add
005 512L-0600 HEXAGON NUT N/A POA
006 36065-180 COVER £8.59 Add
007 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
008 36065-438 COVER £43.86 Add
009 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
010 11006-1SS STAY C.P. N/A POA
011 342L-O612 RANGE 80LT TAPPING N/A POA
012 11113-407 STAY £3.82 Add
013 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
014 11113-292 STAY £8.99 Add
015 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
017 36080-149 RUBBER SHEET £3.56 Add
018 64014-324 SHAFT £5.74 Add
018 36063-196-48 GUARD N/A POA
019 68013-336 SPRING £7.63 Add
020 71082-111 FAN ASSY £55.77 Add
021 51125-103 FAN £22.05 Add
022 11102-151 HOLDER £18.75 Add
023 31062-189 PRE-COAT LOCK BOLT N/A POA
024 579L-0600 FLANGE NUT N/A POA
025 61024-208 SPACER £11.08 Add
026 91014-205 BLADE £35.57 Add
027 31057-197 HEXAGON BOLT £3.96 Add
028 31057-243 BOLT £2.73 Add
029 61024-142 SPACER £2.01 Add
030 71067-108 BRAKE ASSY N/A POA
031 31057-196 HEXAGON BOLT £3.31 Add
032 671V1000 CONICAL SPRING WASHER £2.27 Add
033 91087-101 UNIVERSAL JOINT N/A POA
034 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
035 717B0418 PARALLEL PIN £2.86 Add
036 64014-358 SHAFT £7.50 Add
037 91049-135 CONNECTOR 91049-132 £8.18 Add
038 68036-280 WASHER £2.15 Add
039 816V-0800 E-SNAP RING N/A POA
040 36065-438 COVER £43.86 Add
041 342L-0618 FLANGE BOLT TAPPING N/A POA
042 51116-149 HANDLE BRACKET(L) £36.18 Add
043 51116-150 HANDLE BRACKET(R) £36.18 Add
044 31057-255 BOLT £2.49 Add
04S 512L-0800 HEXAGON NUT N/A POA
050 71008-275 GEAR CASE ASS'Y £343.80 Add
051 36046-150 SAFETY GUARD £16.98 Add
052 11012-126 HANGER BAND £6.32 Add
054 559L-0600 FLANGE NYLON NUT N/A POA
055 122039 ENGINE.HONDA GXV160H2-SFL1-R280 N/A POA
