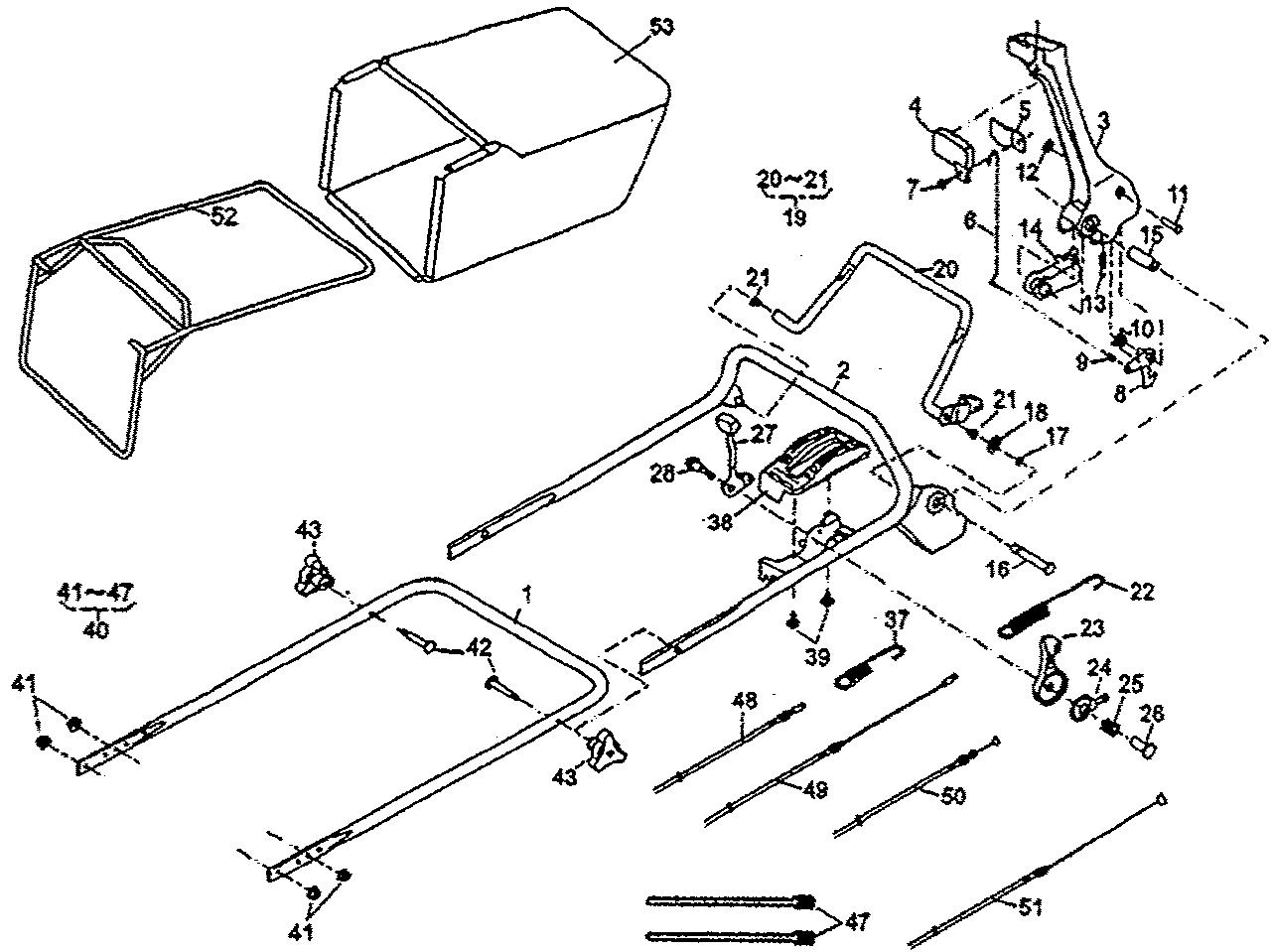

FG762_0117

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	51027-254	LOWER HANDLE	£163.19	Add
002	51027-255	HANDLE	£146.01	Add
003	11095-172	LEVER	£33.54	Add
004	36110-102	BUTTON	£5.04	Add
005	11049-109	SIDE PLATE	£5.32	Add
007	335N-0612	FLANGEBOLT	N/A	POA
008	71203-135	ARM C.P.	£9.66	Add
008	76007-183	BUSH	£2.81	Add
00E	64014-336	SHAFT	£5.74	Add
010	68013-371	SPRING	£3.56	Add
011	31056-127	GIB-HEADED PIN	£2.08	Add
012	576V-0600	PUSH NUT	N/A	POA
013	68013-372	SPRING	£3.56	Add
014	11109-111	LINK	£18.23	Add
015	61023-190	SLEEVE	£4.64	Add
016	64014-337	SHAFT	£3.58	Add
017	812V-0800	C-SNAP RING FOR SHAFT	N/A	POA
018	613L-0800	PLAIN WASHER M8	N/A	POA
019	71161-114-09	LEVER ASSY	£34.56	Add
021	76007-131	BUSH	£2.15	Add
022	68013-391	SPRING	£10.88	Add
023	81010-169	THROTTLE LEVER(OXV120/GXV1S0)	N/A	POA
024	61003-113	THRUST PLATE	£3.42	Add
025	68013-356	SPRING	£3.31	Add
026	31058-168	NUT	£4.77	Add
027	11085-117	LEVER	N/A	POA
028	31052-109	PR6-COAT LOCK BOLT	N/A	POA
037	68013-161	SPRING MOTION DRIVE	£6.81	Add
038	71900-798	COVERASSY	N/A	POA
039	470L-0514	(+)TAPPING SCREW	N/A	POA
040	71900-896	BOLT SET	N/A	POA
041	569L-0800	FLANGE NYLON NUT	£3.30	Add
042	31057-134	BOLT	£4.55	Add
043	36061-118	KNOB	£7.63	Add
047	68026-103	WIRE BAND	N/A	POA
048	91003-125	ENGINE SPEED CABLE	£16.75	Add
049	91003-189	CONTROL CABLE ( MOTION DRIVE )	£32.87	Add
050	91001-329	THROTTLE WIRE(GXV120/GXV160)	£18.86	Add
051	91003-189	CONTROL CABLE ( MOTION DRIVE )	£32.87	Add
052	11062-178	FRAME C.P.	£85.70	Add
053	36098-147	GRASS BAG (LAWNFLITE)	£60.45	Add
