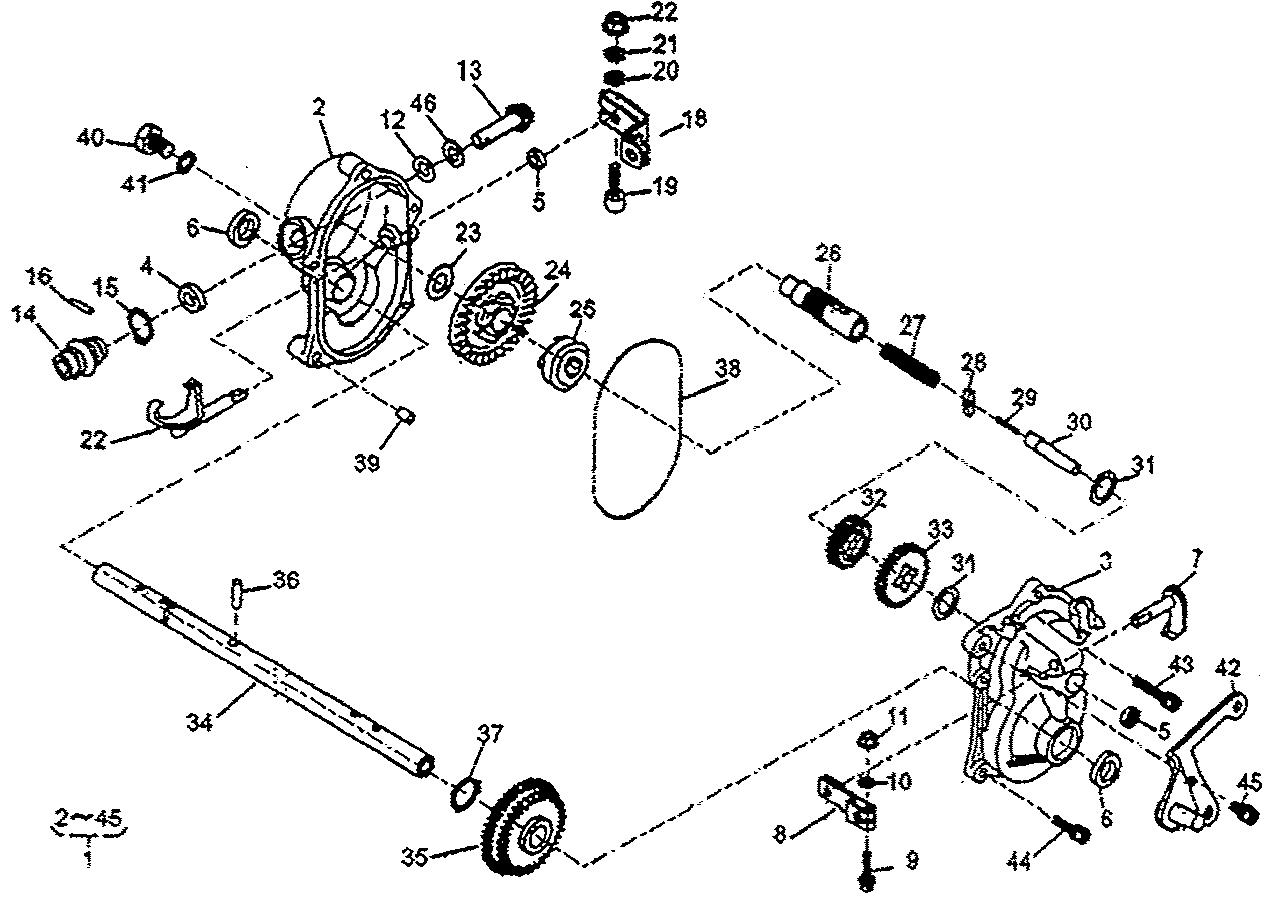

FG762_0125

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	71008-431	GEAR CASE ASSY	£564.72	Add
002	51001-195	GEAR CASE	£70.61	Add
003	51001-195	GEAR CASE	£70.61	Add
004	61002-161	OIL SEAL	£3.19	Add
005	61002-162	OIL SEAL	£2.42	Add
006	61002-163	OIL SEAL	£2.73	Add
007	64024-104	SHIFTER SHAFT	£7.09	Add
008	11104-119	ARM (RED)	£5.61	Add
009	320L-0525	(HEXAGON BOLT(W/PW) M5x25 (OBSOLETE)	N/A	POA
010	611L-0500	PLAIN WASHER M5	N/A	POA
011	571L-0500	FLANGE NUT M5	N/A	POA
012	81003-109	THRUST PLATE	N/A	POA
013	71902-194	PINION	£21.05	Add
014	91097-101	UNIVERSAL JOINT	£33.14	Add
015	812V-2000	C-SNAP RING FOR SHAFT	£2.17	Add
016	7178-0418	PARALLEL PIN	N/A	POA
017	11097-106	FOUR WHEEL 11097-120 , ROLLER 11097-119	N/A	POA
018	11104-137	ARM	£8.39	Add
019	419U-0630	SOCKET SCREW	N/A	POA
020	611L0600	PLAIN WASHER 611L-0600	£1.66	Add
021	661L-0600	SPRING LOCK WASHER	N/A	POA
022	512L-0600	HEXAGON NUT	N/A	POA
023	61024-117	SPACER	£2.42	Add
024	78001-162	BEVEL GEAR	£41.84	Add
025	11129-107	CLUTCH	£24.33	Add
026	64014-236	SHAFT	£33.08	Add
027	68013-262	SPRING	£3.32	Add
028	31034-199	PIN	£5.28	Add
029	736U-0320	SPRING PIN	N/A	POA
030	64014-235	SHAFT	£7.09	Add
031	61024-118	SPACER	£2.98	Add
032	78004-168	GEAR	£45.09	Add
033	78004-165	GEAR	N/A	POA
034	64014-344	SHAFT	£48.88	Add
035	78012-107	GEAR CP.	£43.77	Add
036	31034-150	PIN	£3.31	Add
037	812V-2200	C SNAP RING (RED)	£3.24	Add
038	214B-11000	O-RING	£5.64	Add
039	11083-201	COLLAR	£3.31	Add
040	31057-126	NO LONGER AVAILABLE	N/A	POA
041	68001-110	FIBER WASHER	£2.15	Add
042	11006-191	STAY	£13.32	Add
043	315L-0625	(+)HEXAGON BOLT(SW.PW) (OBSOLETE)	N/A	POA
044	316L-0635	(+)HEXAGON BOLT(SW.PW)	N/A	POA
045	318L-0612	(+)HEXAGON BOLT(SW)	N/A	POA
046	68007-132	SHIM	£1.89	Add
