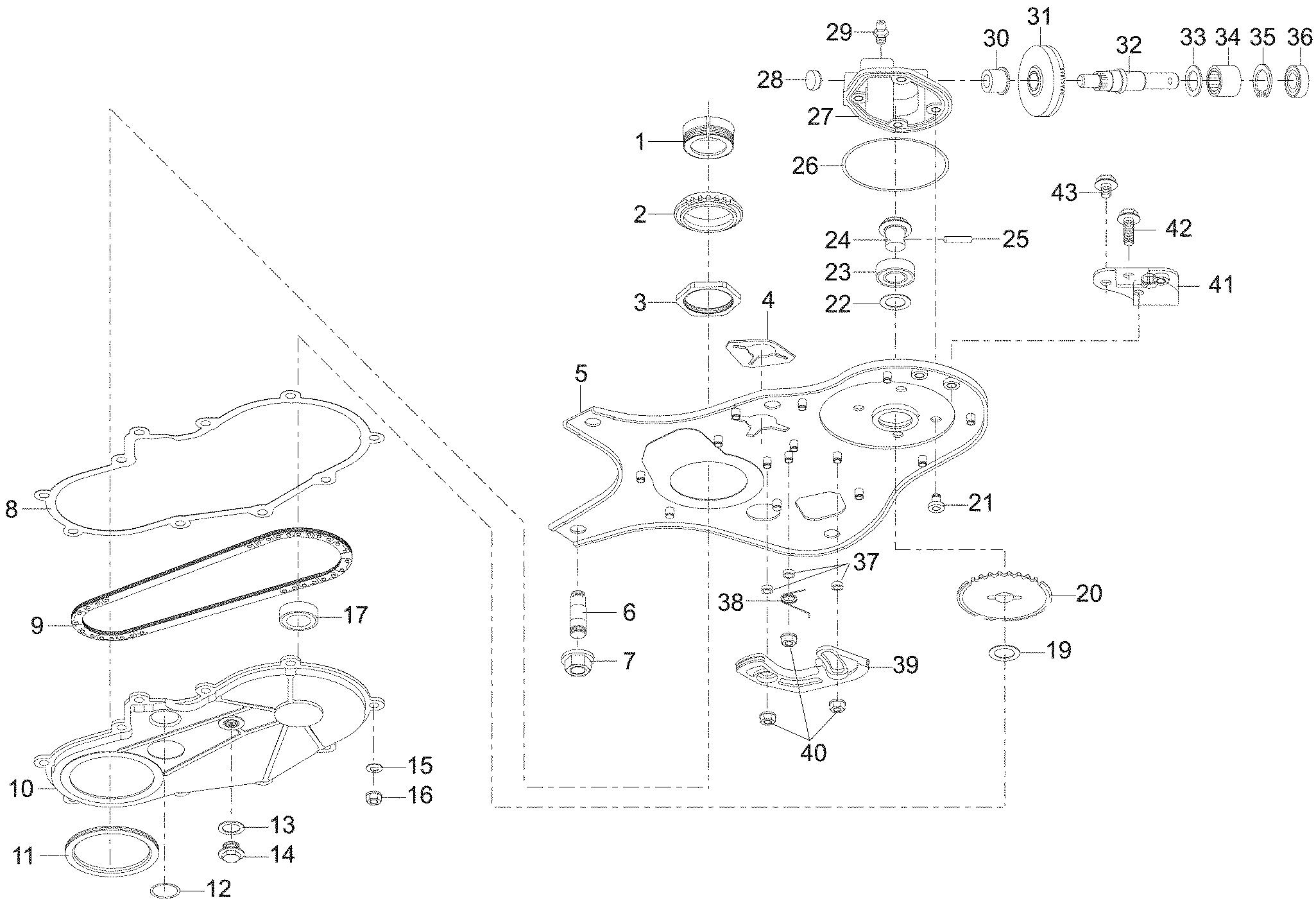

FG759_0105

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	51113-120	RING	£28.53	Add
002	36112-146	SPROCKET	£44.56	Add
003	31058-173	HEXAGON NUT	£18.35	Add
004	61019-232	PACKING	£3.42	Add
005	11137-132	BASE C.P.	£93.41	Add
006	31039-141	STUD 31039-140	£5.46	Add
007	579L-1000	FLANGE NUT	N/A	POA
008	61019-233	PACKING	£10.88	Add
009	91074-136	CHAIN	£57.86	Add
010	51141-102	CHAIN CASE	£79.57	Add
011	76007-196	BUSH	£4.39	Add
012	214B-1600	O-RING	N/A	POA
013	68001-110	FIBER WASHER	£2.15	Add
014	31057-262	HEXAGON BOLT	£2.04	Add
015	68062-112	CONED DISC SPRING	£1.89	Add
016	579L-0500	FLANGE NUT M5	£2.08	Add
017	913B-6901	BEARING	N/A	POA
019	68036-291	WASHER	£3.19	Add
020	36112-145	SPROCKET	£65.45	Add
021	31062-177	PRE-COAT LOCK BOLT	£3.02	Add
022	68036-291	WASHER	£3.19	Add
023	916B-6901	BEARING	N/A	POA
024	78002-207	BEVEL PINION	£58.65	Add
025	31034-192	PIN	£2.73	Add
026	214B-6300	O-RING	N/A	POA
027	51001-306	GEAR CASE 51001-301	£74.01	Add
028	91033-140	BLIND COVER	£4.64	Add
029	91031-102	GREASE NIPPLE	£2.27	Add
030	76007-194	BUSH	£4.11	Add
031	78001-171	NO LONGER AVAILABLE	N/A	POA
032	64001-188	SPLINE SHAFT	£25.27	Add
033	68036-291	WASHER	£3.19	Add
034	937B-121-912	BEARING	N/A	POA
035	811V-2000	C-SNAP RING	N/A	POA
036	61002-202	OIL SEAL	£3.82	Add
037	76007-195	BUSH	£3.31	Add
038	68013-388	SPRING	£2.47	Add
039	51104-159	GUIDE	£7.90	Add
040	579L-0500	FLANGE NUT M5	£2.08	Add
041	11006-163	STAY C.P.	£14.68	Add
042	342L-0630	FLANGE BOLT TAPPING	N/A	POA
043	335L-0612	FLANGE BOLT	N/A	POA
