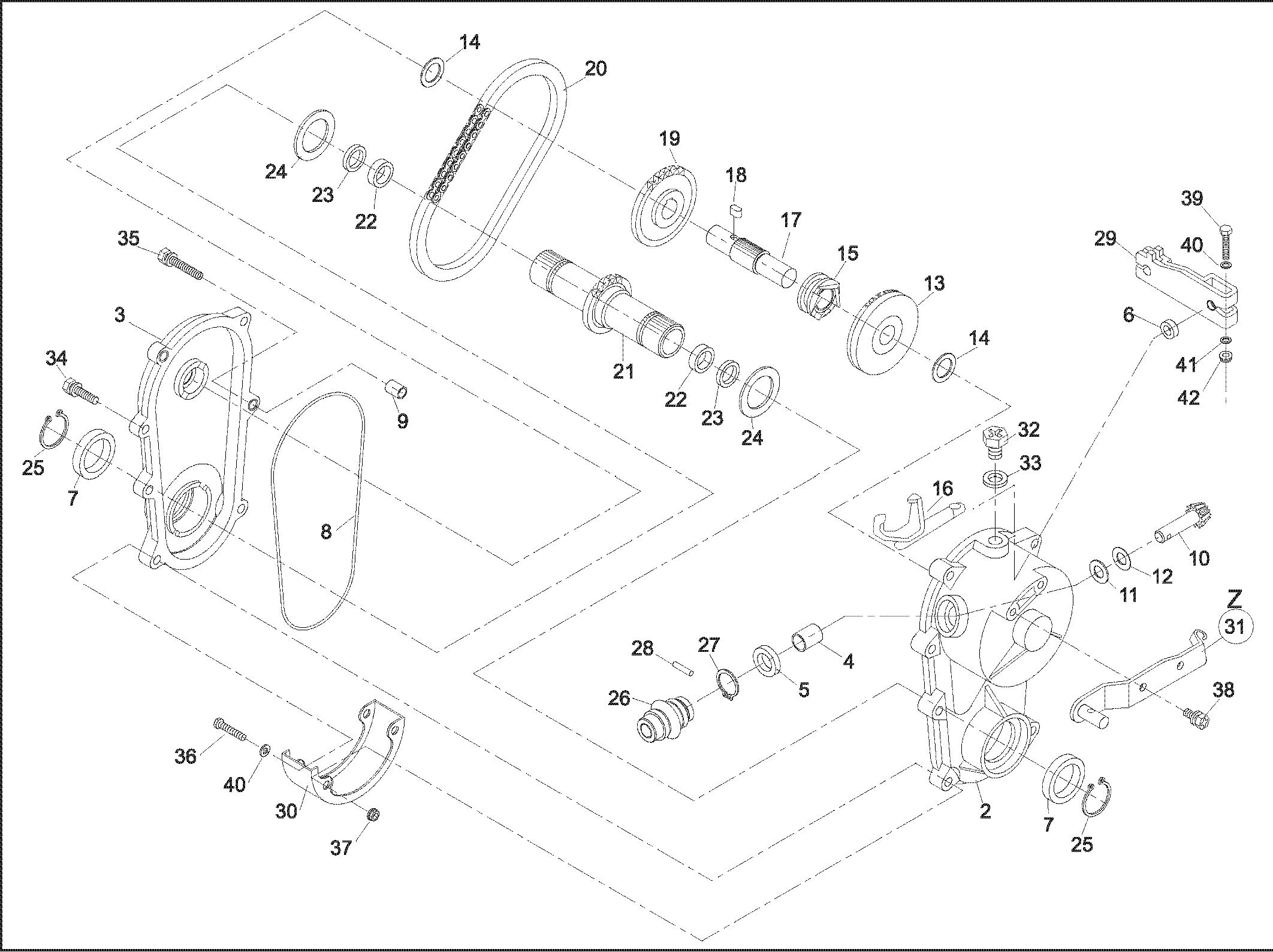

448KJR07_46014-265-02

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	71008-369	GEAR CASE ASSY	£502.86	Add
002	51001-279	GSARCASEfU	£78.51	Add
003	51001-280	GEARCASEtR)	£122.30	Add
004	76007-167	BUSH	£13.58	Add
005	61002-161	OIL SEAL	£3.19	Add
006	61002-162	OIL SEAL	£2.42	Add
007	61002-188	OIL SEAL	£4.86	Add
008	214B1350	O-RING	£5.87	Add
009	11083-201	COLLAR	£3.31	Add
010	71902-194	PINION	£21.05	Add
011	61003-109	THRUST PLATE	£2.55	Add
012	68007-132	SHIM	£1.89	Add
013	78001-162	BEVEL GEAR	£41.84	Add
014	61024-118	SPACER	£2.98	Add
015	11129-107	CLUTCH	£24.33	Add
016	11097-106	FOUR WHEEL 11097-120 , ROLLER 11097-119	N/A	POA
017	64014-242	SHAFT	£28.68	Add
018	91020-147	KEY	£4.22	Add
019	36112-115	SPROCKET	£31.10	Add
020	91074-107	CHAIN	£20.12	Add
021	64014-243	SHAFT	£89.27	Add
022	927B1512	BEARING (FJ-1512)	£15.66	Add
023	61002-189	OIL SEAL	£3.31	Add
024	61024-171	SPACER	£3.31	Add
025	812V2800	C-SNAP RING	£2.86	Add
026	91097-101	UNIVERSAL JOINT	£33.14	Add
027	812V-2000	C-SNAP RING FOR SHAFT	£2.17	Add
028	717B0418	PARALLEL PIN	£2.86	Add
029	11104-169	ARM	£14.13	Add
030	36065-507	COVER	£22.54	Add
031	11006-148	STAY	£20.95	Add
032	31057-262	HEXAGON BOLT	£2.04	Add
033	68001-110	FIBER WASHER	£2.15	Add
034	315L-0625	(+)HEXAGON BOLT(SW.PW) (OBSOLETE)	N/A	POA
035	315L-0630	(+)HEXAGON BOLT(SW.PW) (OBSOLETE)	N/A	POA
036	322L-0635	(+)HEXAGON BOLT (OBSOLETE)	N/A	POA
037	580L-0600	FLANGE LOCK NUT (OBSOLETE)	N/A	POA
038	315L-0616	(+)HEXAGON BOLT(SW,PW) (OBSOLETE)	N/A	POA
039	311M-0630	(+)HEXAGON BOLT (OBSOLETE)	N/A	POA
040	611L0600	PLAIN WASHER 611L-0600	£1.66	Add
041	613L-0600	PLAIN WASHER (OBSOLETE)	N/A	POA
042	571L-600	FLANGE NUT	N/A	POA
