553HWSPH07_46014-339-02

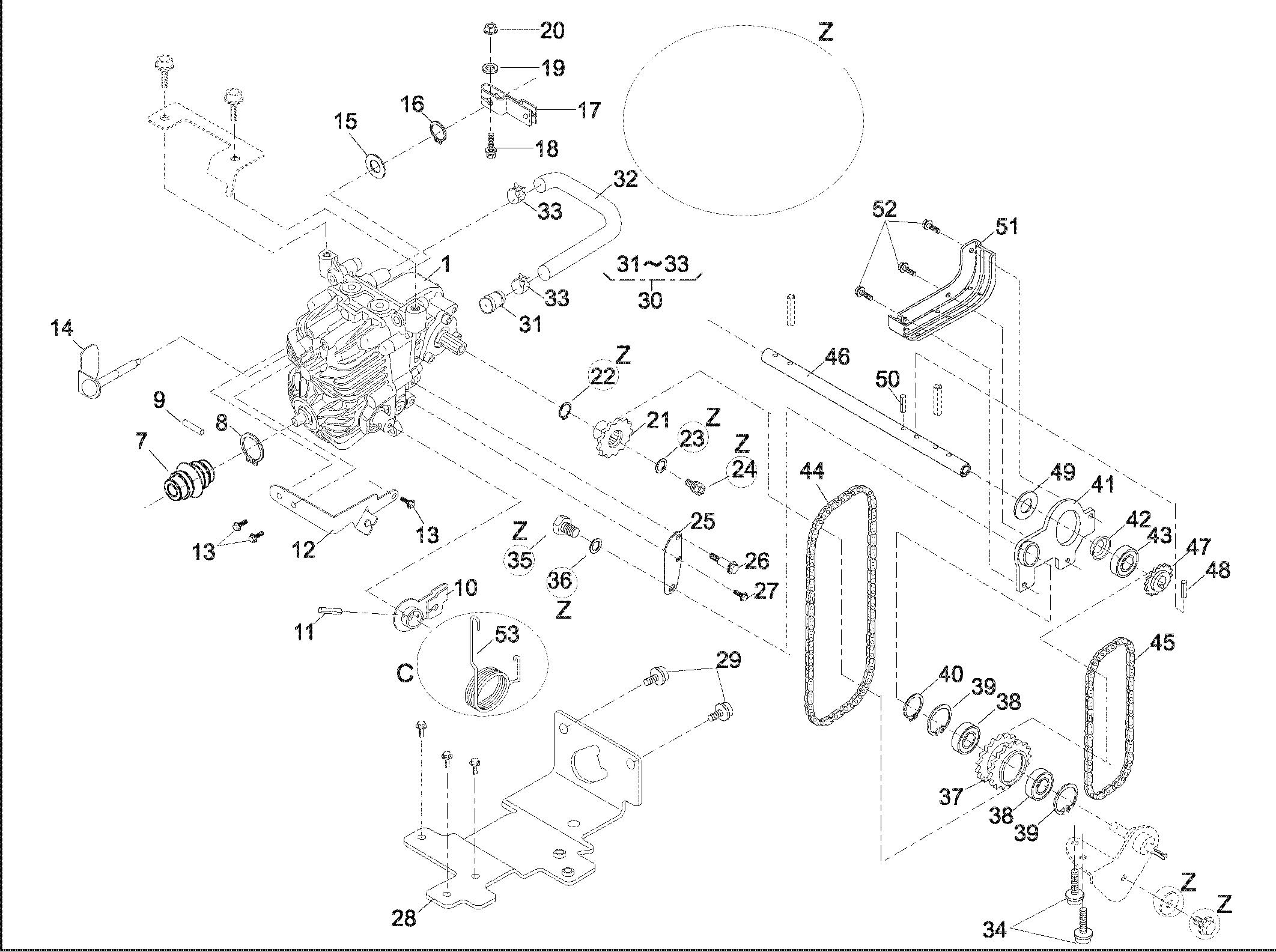

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

553HWSPH07_46014-339-02

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71900-979 HSTASSY £1,563.38 Add
007 91097-101 UNIVERSAL JOINT £33.14 Add
008 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
009 717B0418 PARALLEL PIN £2.86 Add
010 51042-126 LEVERC.P. £33.14 Add
011 711V-0432 SPRING PIN N/A POA
012 51002-121 WIRE HOLDER £11.16 Add
013 335L-0612 FLANGE BOLT N/A POA
014 71203-139 ARM C.P. £18.23 Add
015 68036-280 WASHER £2.15 Add
016 812V-1000 C-SNAP RING N/A POA
017 11104-119 ARM (RED) £5.61 Add
018 320L-0525 (HEXAGON BOLT(W/PW) M5x25 (OBSOLETE) N/A POA
019 611L-0500 PLAIN WASHER M5 N/A POA
020 571L-0500 FLANGE NUT M5 N/A POA
021 36112-142 SPROCKET £47.01 Add
022 812V-1500 C-SNAP RING N/A POA
023 68036-125 WASHER £1.85 Add
024 312L-0612 HEXAGON BOLT N/A POA
025 11113-414 STAY £7.09 Add
026 31062-109 PRE-COAT LOCK BOLT £3.89 Add
027 335L-0612 FLANGE BOLT N/A POA
028 11137-131 BASE C.P. £30.17 Add
029 423U-0816 SOCKET SCREW FLANGE N/A POA
030 71900-980 AIR BREATHER ASSY £13.32 Add
031 91098-103 BREATHER N/A POA
032 36082-125 TUBE £4.64 Add
033 68031-144 HOSE BAND £2.21 Add
034 423U-0820 SOCKET SCREW FLANGE N/A POA
035 311K-0812 HEXAGON BOLT N/A POA
036 661L-0800 SPRING LOCK WASHER M8 N/A POA
037 36112-143 SPROCKET £75.23 Add
038 916B-6002 BEARING N/A POA
039 811V-3200 C-SNAPRING N/A POA
040 812V-1500 C-SNAP RING N/A POA
041 11115-124 TENSION ARM £46.73 Add
042 11102-228 HOLDER £5.74 Add
043 916B6202 BEARING £9.83 Add
044 91074-142 CHAIN 91074-133 £48.21 Add
045 91074-143 CHAIN 91074-134 £47.97 Add
046 64014-366 SHAFT £47.26 Add
047 36112-144 SPROCKET £55.69 Add
048 31034-137 PIN £3.32 Add
049 68036-275 WASHER £2.21 Add
050 711V-0522 SPRING PIN (OBSOLETE) (OBSOLETE) N/A POA
051 36068-200 GUARD £7.90 Add
052 318L-0612 (+)HEXAGON BOLT(SW) N/A POA
053 68013-390 SPRING £20.40 Add
