SHK553HRSP07_46014-265-02

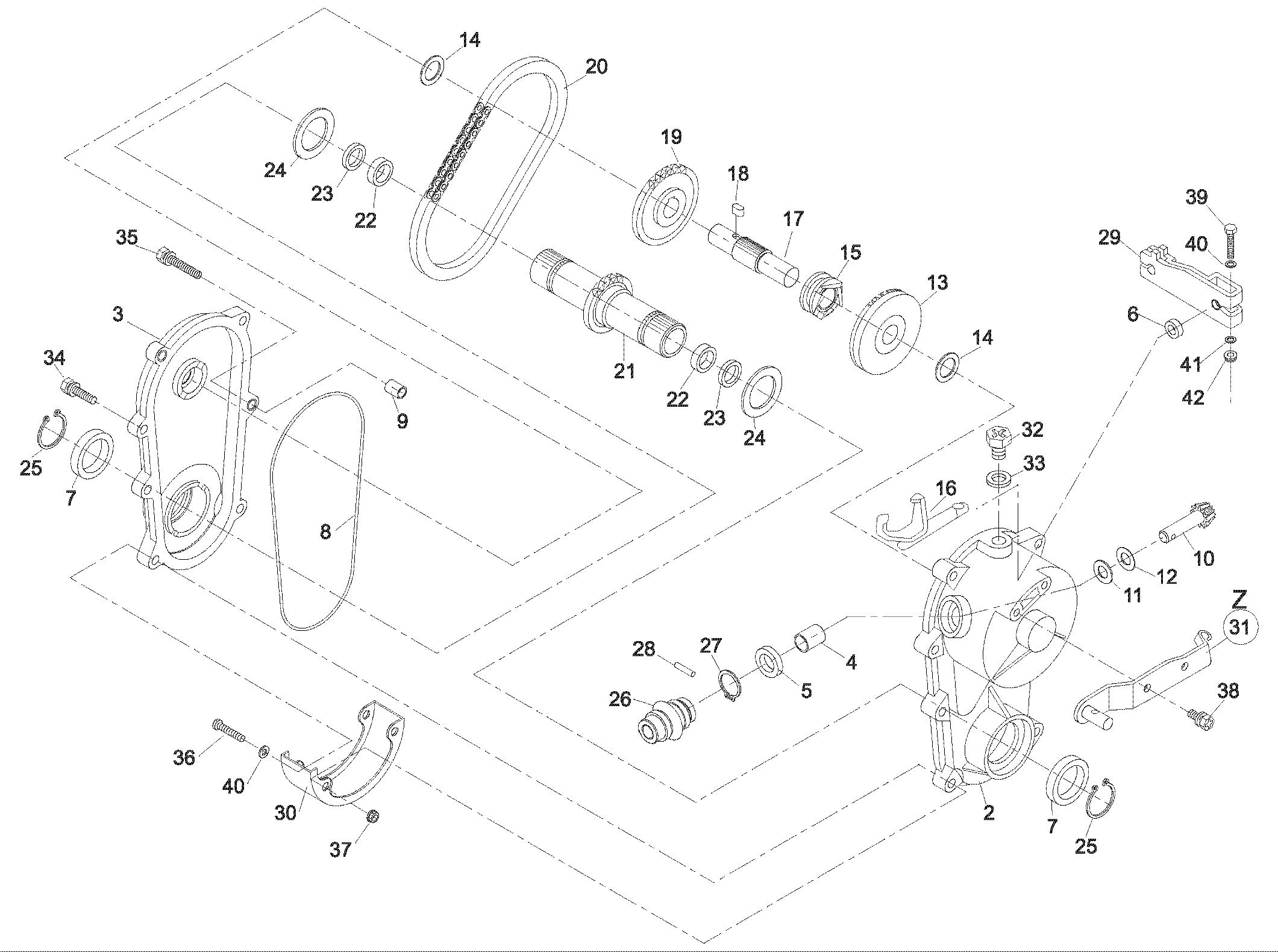

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

SHK553HRSP07_46014-265-02

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71008-369 GEAR CASE ASSY £502.86 Add
002 51001-279 GSARCASEfU £78.51 Add
003 51001-280 GEARCASEtR) £122.30 Add
004 76007-167 BUSH £13.58 Add
005 61002-161 OIL SEAL £3.19 Add
006 61002-162 OIL SEAL £2.42 Add
007 61002-188 OIL SEAL £4.86 Add
008 214B1350 O-RING £5.87 Add
009 11083-201 COLLAR £3.31 Add
010 71902-194 PINION £21.05 Add
011 61003-109 THRUST PLATE £2.55 Add
012 68007-132 SHIM £1.89 Add
013 78001-162 BEVEL GEAR £41.84 Add
014 61024-118 SPACER £2.98 Add
015 11129-107 CLUTCH £24.33 Add
016 11097-106 FOUR WHEEL 11097-120 , ROLLER 11097-119 N/A POA
017 64014-242 SHAFT £28.68 Add
018 91020-147 KEY £4.22 Add
019 36112-115 SPROCKET £31.10 Add
020 91074-107 CHAIN £20.12 Add
021 64014-243 SHAFT £89.27 Add
022 927B1512 BEARING (FJ-1512) £15.66 Add
023 61002-189 OIL SEAL £3.31 Add
024 61024-171 SPACER £3.31 Add
025 812V2800 C-SNAP RING £2.86 Add
026 91097-101 UNIVERSAL JOINT £33.14 Add
027 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
028 717B0418 PARALLEL PIN £2.86 Add
029 11104-169 ARM £14.13 Add
030 36065-507 COVER £22.54 Add
031 11006-148 STAY £20.95 Add
032 31057-262 HEXAGON BOLT £2.04 Add
033 68001-110 FIBER WASHER £2.15 Add
034 315L-0625 (+)HEXAGON BOLT(SW.PW) (OBSOLETE) N/A POA
035 315L-0630 (+)HEXAGON BOLT(SW.PW) (OBSOLETE) N/A POA
036 322L-0635 (+)HEXAGON BOLT (OBSOLETE) N/A POA
037 580L-0600 FLANGE LOCK NUT (OBSOLETE) N/A POA
038 315L-0616 (+)HEXAGON BOLT(SW,PW) (OBSOLETE) N/A POA
039 311M-0630 (+)HEXAGON BOLT (OBSOLETE) N/A POA
040 611L0600 PLAIN WASHER 611L-0600 £1.66 Add
041 613L-0600 PLAIN WASHER (OBSOLETE) N/A POA
042 571L-0600 HEXAGON NUT FLANGE (OBSOLETE) N/A POA
