KAAZ08_S448KJR_0003

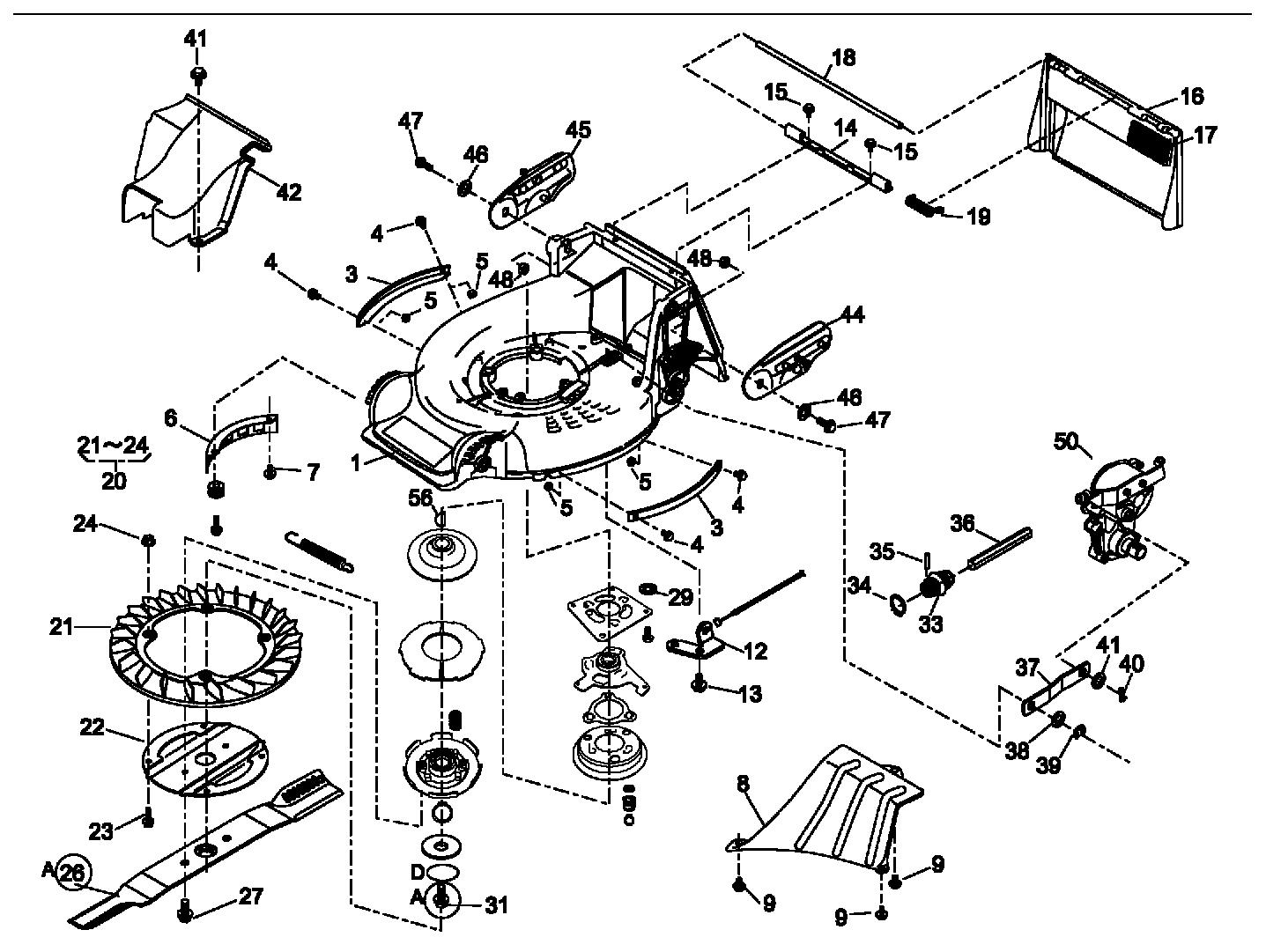

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

KAAZ08_S448KJR_0003

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51043-149-42 HOUSING £454.07 Add
003 51090-128-09 PROTECTOR £10.20 Add
004 335L0616 FLANGE BOLT £2.27 Add
005 512L-0600 HEXAGON NUT N/A POA
006 36065-180 COVER £8.59 Add
007 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
008 36065-400 COVER £15.66 Add
009 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
012 51002-118 WIRE HOLDER £5.20 Add
013 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
014 11113-292 STAY £8.99 Add
015 342L-0612 FLANGE BOLT TAPPING 342J-0612 £2.81 Add
016 36068-188-46 GUARD £33.26 Add
017 36080-149 RUBBER SHEET £3.56 Add
018 64014-324 SHAFT £5.74 Add
019 68013-336 SPRING £7.63 Add
020 71082-111 FAN ASSY £55.77 Add
021 51125-103 FAN £22.05 Add
022 11102-151 HOLDER £18.75 Add
023 31062-169 PRE-COAT LOCK BOLT £2.47 Add
024 579L-0600 FLANGE NUT N/A POA
026 91014-209 BLADE £36.69 Add
027 335M1020 FLANGE BOLT £3.80 Add
029 68036-292 WASHER £2.28 Add
030 71067-116 BRAKE ASSY £462.64 Add
031 31057-272 HEXAGON BOLT £3.26 Add
033 91097-101 UNIVERSAL JOINT £33.14 Add
034 812V-2000 C-SNAP RING FOR SHAFT £2.17 Add
035 717B0418 PARALLEL PIN £2.86 Add
036 64014-372 SHAFT £5.50 Add
037 91049-137 CONNECTOR £4.32 Add
038 68036-280 WASHER £2.15 Add
039 816V-0800 E-SNAP RING N/A POA
040 733L-1000 SNAP PIN N/A POA
041 68036-280 WASHER £2.15 Add
042 36065-455 COVER £8.87 Add
043 335L0616 FLANGE BOLT £2.27 Add
044 51116-145 HANDLE BRACKET LEFT £32.07 Add
045 51116-146 HANDLE BRACKET £31.17 Add
046 68036-101 WASHER £2.50 Add
047 312M-0830 HEXAGON BOLT(SW) £3.47 Add
048 512L-0800 HEXAGON NUT N/A POA
050 71008-369 GEAR CASE ASSY £502.86 Add
055 122048 ENGINE:KAWASAKI FJ151V-AC50 N/A POA
056 96007-183 KEY N/A POA
