FG682_0200

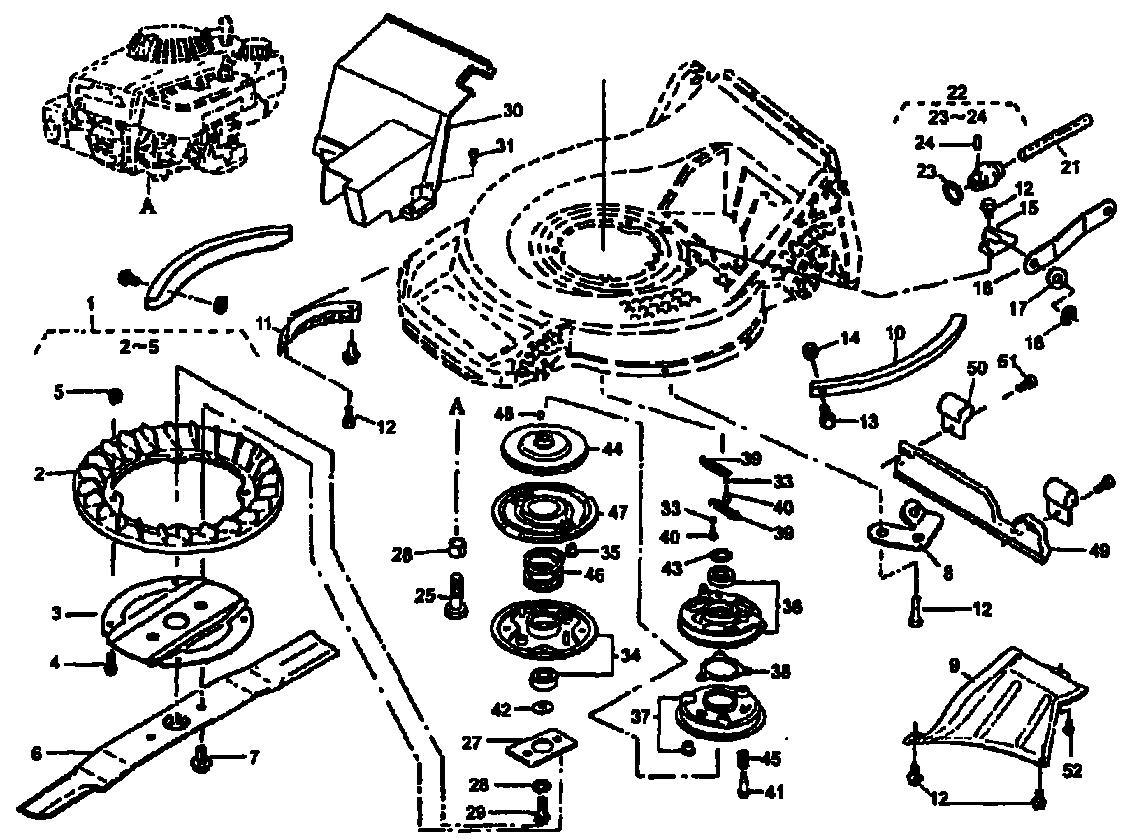

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG682_0200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71082110 FAN ASSY N/A POA
002 51125103 FAN N/A POA
003 11102151 HOLDER N/A POA
004 335L0620 FLANGE BOLT £2.27 Add
005 569L0600 FLANGE NYLON NUT £2.15 Add
006 91014159 BLADE N/A POA
007 31057197 HEXAGON BOLT N/A POA
008 51002118 WIRE HOLDER N/A POA
009 36065300 COVER N/A POA
010 5109011709 PROTECTOR N/A POA
011 36065180 COVER N/A POA
012 342J0612 FLANGE BOLT TAPPING £2.58 Add
013 335L0610 FLANGE BOLT £2.27 Add
014 512L0600 HEXAGON NUT £1.68 Add
015 11006113 STAY C.P. N/A POA
016 91049127 CONNECTOR N/A POA
017 611L1000 WASHER £1.73 Add
018 816V0800 E-SNAP RING £1.73 Add
021 64014334 SHAFT N/A POA
022 91097101 UNIVERSAL JOINT N/A POA
023 812V2000 C-SNAP RING FOR SHAFT £1.85 Add
024 717B0418 PARALLEL PIN £2.86 Add
025 31057243 HEXAGON BOLT N/A POA
026 61024142 SPACER N/A POA
027 61024169 SPACER N/A POA
028 671V1000 CONICAL SPRING WASHER £2.27 Add
029 31057195 HEXAGON BOLT N/A POA
030 38085397 COVER N/A POA
031 342L0816 FLANGE BOLT TAPPING N/A POA
032 71067106 BRAKE ASS'Y N/A POA
033 19512883000 FAN COLLAR N/A POA
034 72600VA4010 BLADE HOLDER ASSY N/A POA
035 72613VA4000 BLADE HOLDER BUSH N/A POA
036 75090VA4030 BALL CONTROL PLATE N/A POA
037 75100VA4010 BRAKE C.P. N/A POA
038 75110VA4000 BALL RETAINER C.P. N/A POA
039 75182VA3J00 CLUTCH RETURN SPRING N/A POA
040 90014952000 FLANGE BOLT N/A POA
041 90021VA4000 SPECIAL BOLT N/A POA
042 90409952000 WASHER N/A POA
043 90501952010 THRUST WASHER N/A POA
044 75130VA4000 DRIVE DISK N/A POA
045 75132VA4000 BRAKE HOLDER SPRING N/A POA
046 75183VA3J00 CLUTCH SPRING N/A POA
047 75150VA3J01 DRIVEN DISK C.P. N/A POA
048 9440116150 WOOD RUFF KEY N/A POA
049 36046147 SAFETY GUARD N/A POA
050 11012126 HANGER BAND N/A POA
051 335L0616 FLANGE BOLT £2.27 Add
052 342J0610 FLANGE BOLT TAPPING £2.58 Add
