FG682_0300

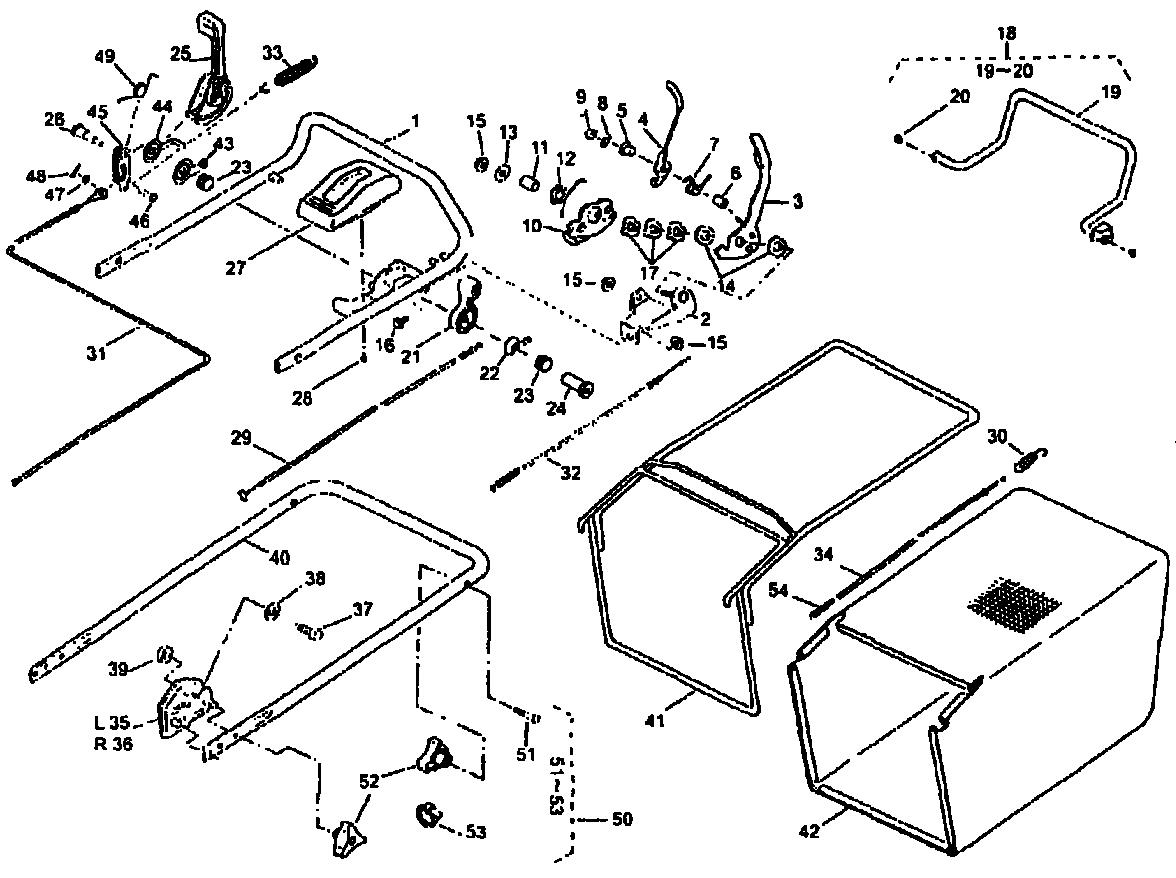

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG682_0300

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027242 HANDLE N/A POA
002 1111339609 STAY N/A POA
003 1109516009 LEVER N/A POA
004 1109516109 LEVER N/A POA
005 76007131 BUSH N/A POA
006 61024206 SPACER N/A POA
007 68013334 SPRING N/A POA
008 68036198 WASHER N/A POA
009 563L0600 U-HEXAGON CAP NUT £1.80 Add
010 11109108 LINK N/A POA
011 61024207 SPACER N/A POA
012 68013335 SPRING N/A POA
013 68036262 WASHER N/A POA
014 68036200 WASHER N/A POA
015 569L0800 FLANGE NYLON NUT £2.34 Add
016 335L0820 FLANGE BOLT £2.68 Add
017 664J1600 WAVE SPRING WASHER £1.80 Add
018 7116111109 LEVER ASSY N/A POA
020 76007131 BUSH N/A POA
021 91010169 THROTTLE LEVER N/A POA
022 61003113 THRUST PLATE N/A POA
023 68013356 SPRING N/A POA
024 31058168 HEXAGON NUT N/A POA
025 11095162 LEVER (HST) N/A POA
026 31057249 BOLT N/A POA
027 71900811 COVER ASSY N/A POA
028 470L0514 (+)TAPPING SCREW £1.73 Add
029 91001233 THROTTLE WIRE (GXV120/GXV160) N/A POA
030 68013161 SPRING N/A POA
031 91003167 CONTROL CABLE (HST) N/A POA
032 91003144 CONTROL CABLE (BBC) N/A POA
033 68013360 SPRING N/A POA
034 91003166 CONTROL CABLE N/A POA
035 51116132 HANDLE BRACKET (L) N/A POA
036 51116133 HANDLE BRACKET (R) N/A POA
037 312M0830 HEXAGON BOLT(SW) £2.42 Add
038 68036101 WASHER N/A POA
039 512L0800 HEXAGON NUT £1.73 Add
040 51027150 HANDLE N/A POA
041 11062143 FRAME C.P. N/A POA
042 36098141 GRASS BAG C.P. (SHANKS) £79.03 Add
043 11049108 SLIDE PLATE N/A POA
044 61003118 THRUST PLATE N/A POA
045 11109109 LINK N/A POA
046 31056128 GIB-HEADED PIN N/A POA
047 613L0600 WASHER £1.54 Add
048 733L0600 SNAP PIN £1.66 Add
049 68013358 SPRING N/A POA
050 71052119 BOLT SET N/A POA
051 31057134 BOLT N/A POA
052 36061118 KNOB N/A POA
053 68028103 WIRE BAND N/A POA
054 68013364 SPRING N/A POA
