FG682_0400

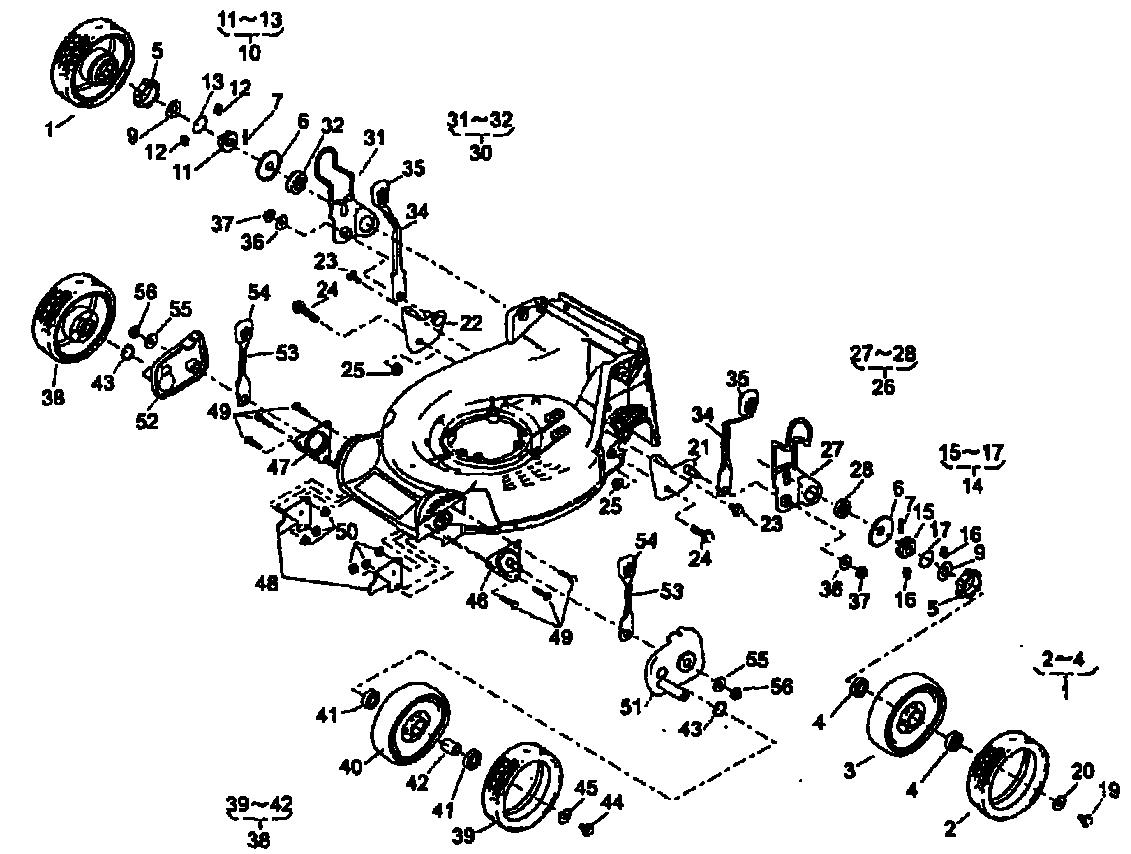

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG682_0400

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 71041136 WHEEL ASSY(A.W.) N/A POA
002 91086113 TIRE N/A POA
004 916B6002 BEARING £10.47 Add
005 11086119 STOPPER N/A POA
006 61003112 THRUST PLATE N/A POA
007 31034137 PIN N/A POA
009 68036146 WASHER N/A POA
010 71158101 RATCHET ASSY(R) N/A POA
011 11102138 HOLDER N/A POA
012 31034170 PIN N/A POA
013 68013266 SPRING N/A POA
014 71158102 RATCHET ASSY(L) N/A POA
015 11102138 HOLDER N/A POA
016 31034170 PIN N/A POA
017 68013266 SPRING N/A POA
019 31057181 HEXAGON BOLT N/A POA
020 68036101 WASHER N/A POA
021 11006151 STAY C.P.(RL) N/A POA
022 11006152 STAY C.P.(RR) N/A POA
023 342L0612 FLANGE BOLT TAPPING £2.58 Add
024 31057255 HEXAGON BOLT N/A POA
025 569L0800 FLANGE NYLON NUT £2.34 Add
026 71122112 ADJUSTER ASSY(L) N/A POA
027 11142131 ADJUSTER(RL) N/A POA
028 945L0349 BEARING N/A POA
030 71122113 ADJUSTER ASSY(R) N/A POA
031 11142132 ADJUSTER(RR) N/A POA
032 945L0349 BEARING N/A POA
034 1115010509 ADJUST LEVER N/A POA
035 36061121 KNOB N/A POA
036 613L0800 WASHER £1.51 Add
037 569L0800 FLANGE NYLON NUT £2.34 Add
038 71041135 WHEEL ASSY(A.W.) N/A POA
039 91086113 TIRE N/A POA
041 916B6002 BEARING £10.47 Add
042 11083332 COLLAR N/A POA
043 51113119 RING N/A POA
044 31057181 HEXAGON BOLT N/A POA
045 68036101 WASHER N/A POA
046 11006153 STAY C.P.(FL) N/A POA
047 11006154 STAY C.P.(FR) N/A POA
048 11113409 STAY N/A POA
049 335L0625 FLANGE BOLT £2.47 Add
050 569L0600 FLANGE NYLON NUT £2.15 Add
051 11142129 ADJUSTER(FL) N/A POA
052 11142130 ADJUSTER(FR) N/A POA
053 1115010609 ADJUST LEVER N/A POA
054 36061121 KNOB N/A POA
055 613L0800 WASHER £1.51 Add
056 569L0800 FLANGE NYLON NUT £2.34 Add
