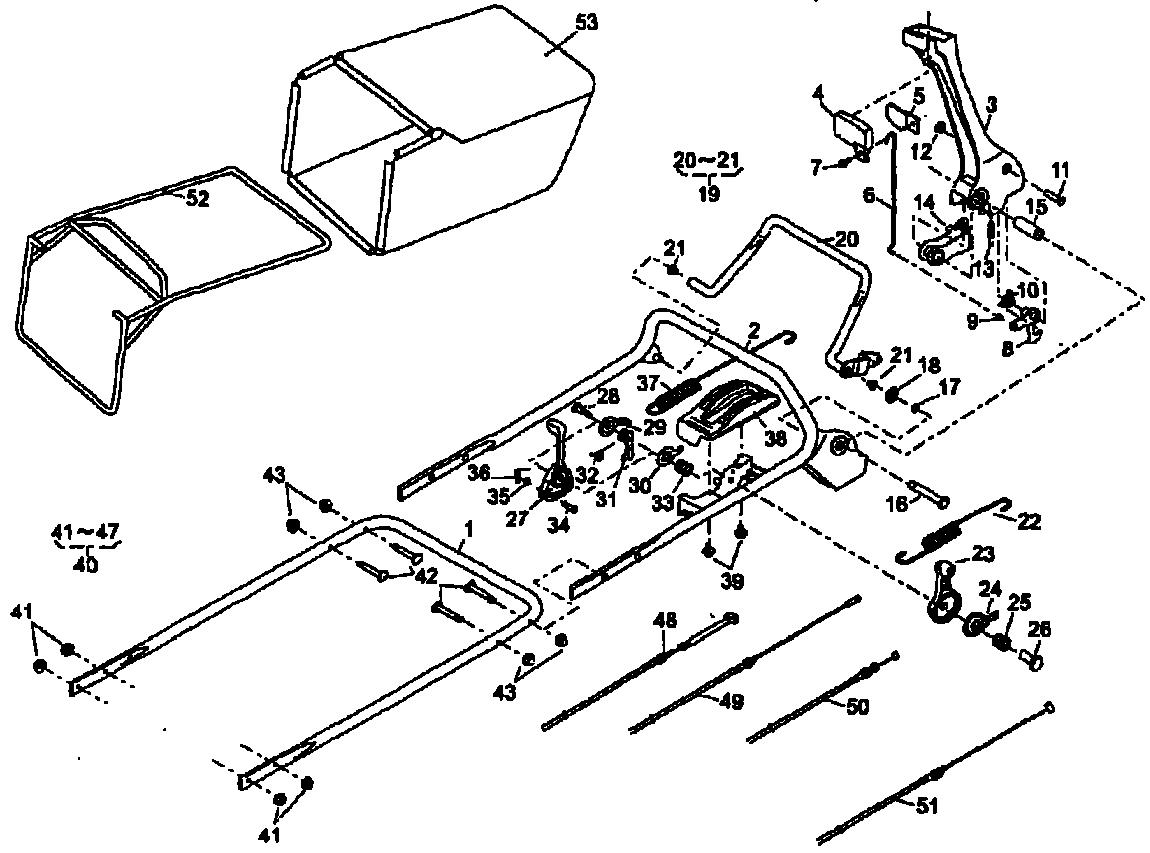

FG682_0600

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	51027249	HANDLE	N/A	POA
002	51027250	HANDLE	N/A	POA
003	11095172	LEVER(BBC)	N/A	POA
004	36110102	BUTTON	N/A	POA
005	11049109	SLIDE PLATE	N/A	POA
006	64014336	SHAFT	N/A	POA
007	335N0612	FLANGE BOLT	£2.23	Add
008	71203135	ARM C.P.	N/A	POA
009	76007183	BUSH	N/A	POA
010	68013371	SPRING	N/A	POA
011	31056127	GIB-HEADED PIN	N/A	POA
012	576V0600	PUSH NUT	£2.06	Add
013	68013372	SPRING	N/A	POA
014	11109111	LINK	N/A	POA
015	61023190	SLEEVE	N/A	POA
016	64014337	SHAFT	N/A	POA
017	812V0800	C-SNAP RING FOR SHAFT	£1.73	Add
018	613L0800	WASHER	£1.51	Add
019	7116111409	LEVER ASSY	N/A	POA
021	76007131	BUSH	N/A	POA
022	68013376	SPRING	N/A	POA
023	91010169	THROTTLE LEVER	N/A	POA
024	61003113	THRUST PLATE	N/A	POA
025	68013356	SPRING	N/A	POA
026	31058168	HEXAGON NUT	N/A	POA
027	11095162	LEVER (HST)	N/A	POA
028	31057249	BOLT	N/A	POA
029	61003118	THRUST PLATE	N/A	POA
030	11049108	SLIDE PLATE	N/A	POA
031	11109110	LINK	N/A	POA
032	68013369	SPRING	N/A	POA
033	68013356	SPRING	N/A	POA
034	31056126	GIB-HEADED PIN	N/A	POA
035	613L0600	WASHER	£1.54	Add
036	733L0600	SNAP PIN	£1.66	Add
037	68013375	SPRING	N/A	POA
038	71900811	COVER ASSY	N/A	POA
039	470L0514	(+)TAPPING SCREW	£1.73	Add
040	71900847	BOLT SET	N/A	POA
041	569L0800	FLANGE NYLON NUT	£2.34	Add
042	31057256	BOLT	N/A	POA
043	583L0800	FLANGE CAP NUT	£3.45	Add
047	68028103	WIRE BAND	N/A	POA
048	91003171	CONTROL CABLE(HST-THROTTLE)	N/A	POA
049	91003172	CONTROL CABLE(HST-NEUTRAL)	N/A	POA
050	91001329	THROTTLE WIRE(GXV120/GXV160)	N/A	POA
051	91003169	CONTROL CABLE(BBC)	N/A	POA
052	11062178	FRAME C.P.	N/A	POA
053	36098147	GRASS BAG C.P.(LAWN FLITE)	N/A	POA
