LM_HDL_PRO_2012

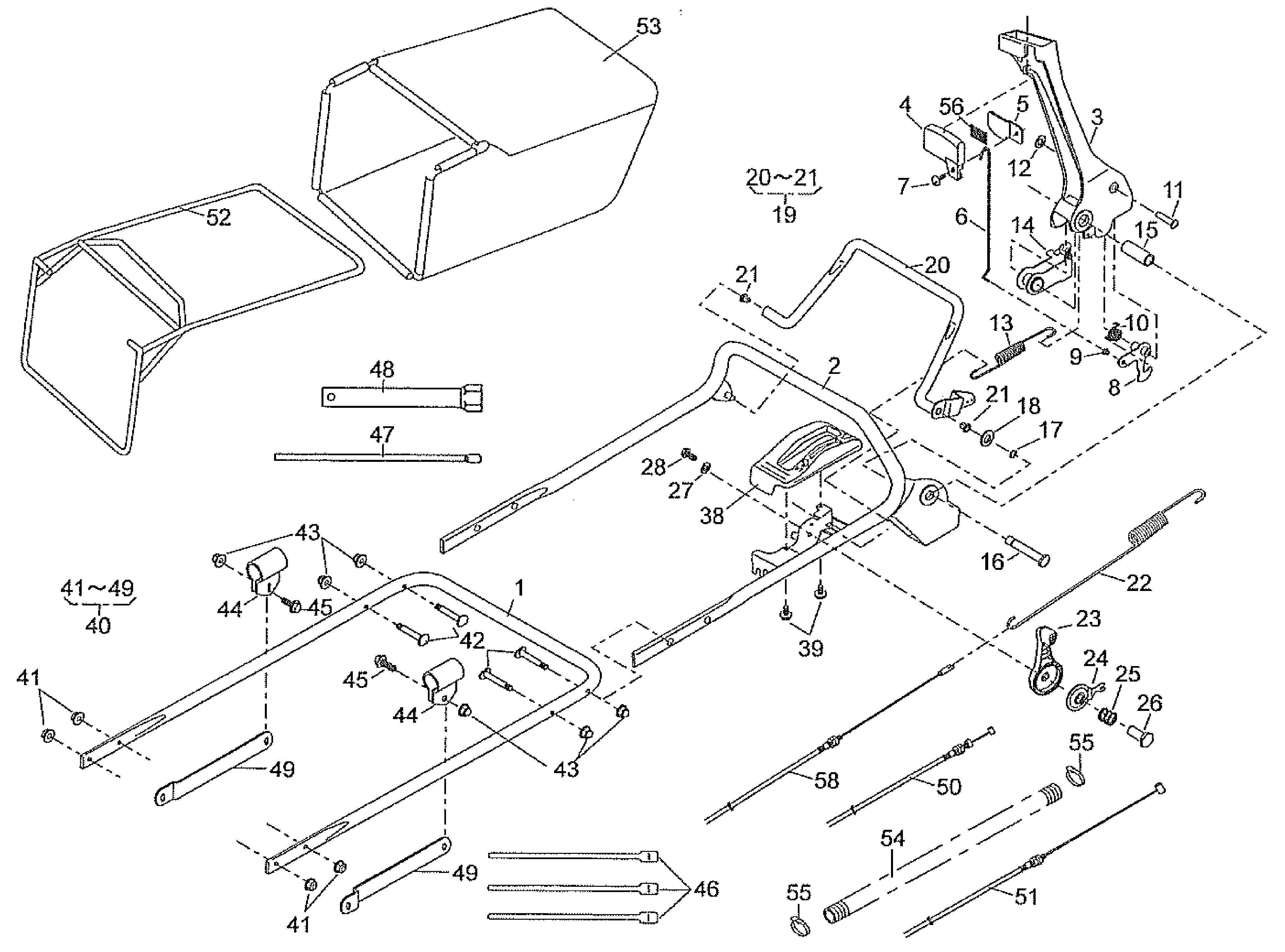

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

LM_HDL_PRO_2012

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51027-268-103 HANDLE £101.57 Add
002 51027-269-103 HANDLE £130.56 Add
003 11095-172 LEVER £33.54 Add
004 36110-102 BUTTON £5.04 Add
005 11049-109 SIDE PLATE £5.32 Add
006 64014-336 SHAFT £5.74 Add
007 376L0612 SCREW £1.87 Add
008 71203-135 ARM C.P. £9.66 Add
009 76007-183 BUSH £2.81 Add
010 6B013-371 SPRING N/A POA
011 31056-127 GIB-HEADED PIN £2.08 Add
012 576V0600 PUSH NUT £2.06 Add
013 68013-392 SPRING £6.38 Add
014 11109-111 LINK £18.23 Add
015 61023-190 SLEEVE £4.64 Add
016 64014-337 SHAFT £3.58 Add
017 812V0800 C-SNAP RING FOR SHAFT £1.73 Add
018 61310800 PLAIN WASHER N/A POA
019 71161-114-09 LEVER ASSY £34.56 Add
021 76007-131 BUSH £2.15 Add
022 68013-382 SPRING £23.37 Add
023 91010-169 THROTTLE LEVER £15.71 Add
024 61003-113 THRUST PLATE £3.42 Add
025 68013-356 SPRING £3.31 Add
026 31058-168 NUT £4.77 Add
027 68036-125 WASHER £1.85 Add
028 31810612 (+)HEX. BOLT(W/SW) N/A POA
038 71900-797 COVER ASSY £23.78 Add
039 47010514 (+)TAPPING SCREW N/A POA
040 71906-557 BOLT SET N/A POA
041 56910800 FLANGE NYLON NUT N/A POA
042 31057-256 BOLT £2.73 Add
043 58310800 FLANGE CAP NUT N/A POA
044 11012-132 BAND £7.50 Add
045 31057-181 HEXAGON BOLT £2.55 Add
046 68028-118 WIRE BAND £4.48 Add
047 66008-103 PLUG BOX BAR (8x200) £3.02 Add
048 66006-125 BOX SPANNER £6.12 Add
049 71900-846 BAR SET (PAIR) £46.53 Add
050 91001-329 THROTTLE WIRE(GXV120/GXV160) £18.86 Add
051 91003-169 CONTROL CABLE ( BBC ) £25.08 Add
052 11062-178 FRAME C.P. £85.70 Add
053 36098-147 GRASS BAG (LAWNFLITE) £60.45 Add
054 41003-201 TUBE(15.6x800L) £9.58 Add
055 68028-119 WIRE BAND £1.60 Add
056 36080-156 RUBBER SHEET £2.54 Add
058 91003-165 CONTROL CABLE £31.26 Add
