LM_ALROL_2010

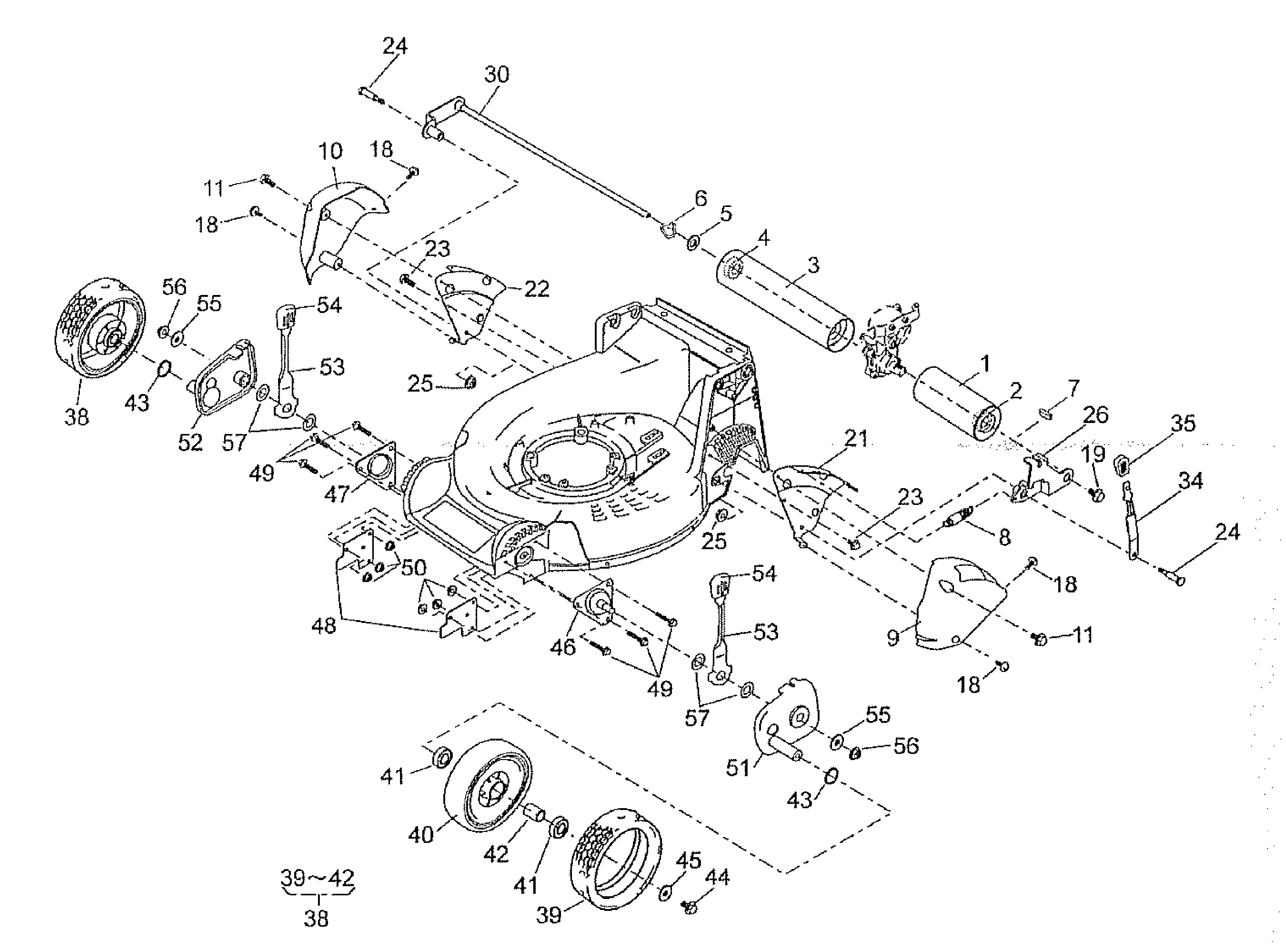

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	36099-136	ROLLER	£122.19	Add
002	915B6202	BEARING (6202DD)	£9.95	Add
003	36099-137	ROLLER 36099-103	£113.63	Add
004	915B6202	BEARING (6202DD)	£9.95	Add
005	61024-118	SPACER	£2.98	Add
006	664V0016	WAVE SPRING WASHER	£1.80	Add
007	91020-131	KEY	£2.76	Add
008	68013-265	SPRING	£10.48	Add
009	36065-444	COVER	£28.46	Add
010	36065-445	COVER	£30.24	Add
011	342L0616	FLANGE BOLT TAPPING	£2.58	Add
018	475L0516	(+)TAPPING SCREW	£1.80	Add
019	31057-282	HEXAGON BOLT	£6.46	Add
021	11113-411	STAY	£26.91	Add
022	11113-412	STAY	£23.78	Add
023	342L0612	FLANGE BOLT TAPPING	£2.58	Add
024	31057-261	HEXAGON BOLT	£14.64	Add
025	569L0800	FLANGE NYLON NUT	£2.34	Add
026	11142-136	ADJUSTER	£43.08	Add
030	11142-137	ADJUSTER	£62.00	Add
034	11150-108-09	ADJUSTER	£10.75	Add
035	36061-121	KNOB	£5.62	Add
038	71041-135	WHEEL ASS'Y (A.W.)	£100.70	Add
039	91086-113	TIRE	£30.30	Add
041	916B6002	BEARING	£10.47	Add
042	11083-332	COLLAR	£6.12	Add
043	51113-119	RING	£1.89	Add
044	31057-181	HEXAGON BOLT	£2.55	Add
045	68036-101 .	WASHER (9x25x2.3)	N/A	POA
046	11006-153	STAY CAP	£13.23	Add
047	71950-274	STAY C.P	£21.63	Add
048	11113-409	STAY	£12.40	Add
049	33510625	FLANGE BOLT	N/A	POA
050	569L0600	FLANGE NYLON NUT	£2.15	Add
051	11142-129	ADJUSTER	£26.20	Add
052	11142-130	ADJUSTER RIGHT	£29.89	Add
053	11150-109-09	ADJUSTER LEVER	£12.12	Add
054	36061-121	KNOB	£5.62	Add
055	68036-101	WASHER	£2.50	Add
056	584L0800	U-FLANGE NUT	£2.86	Add
057	68013-393	SPRING	£3.48	Add
