LM_GCR_2012

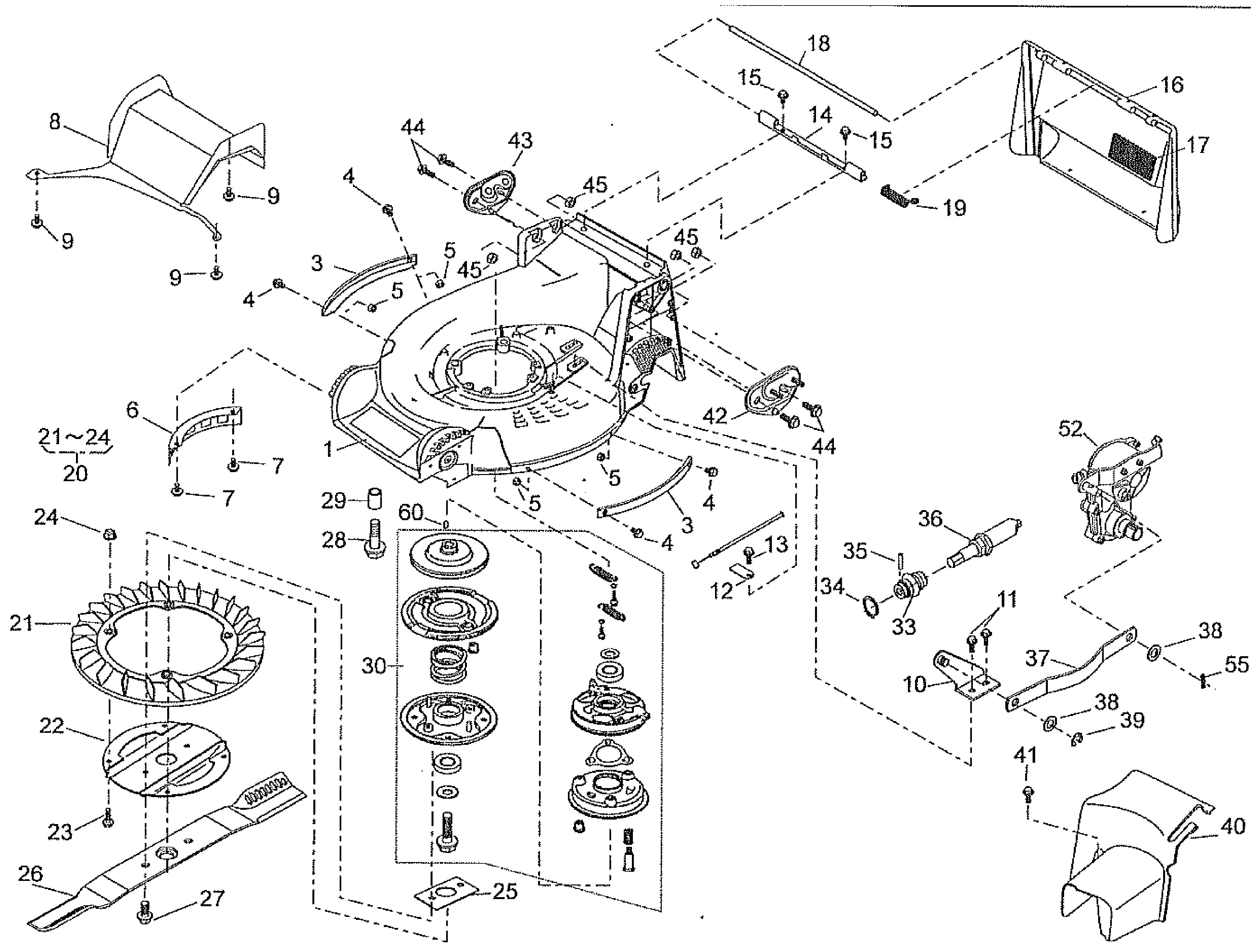

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

LM_GCR_2012

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 51043-151-42 DECK ASSY (553 PRO) £441.64 Add
003 51090-117-09 PROTECTOR £10.20 Add
004 335L0616 FLANGE BOLT £2.27 Add
005 512L0600 HEXAGON NUT £1.68 Add
006 36065-180 COVER £8.59 Add
007 342L0612 FLANGE BOLT TAPPING £2.58 Add
008 36065-460-42 COVER £65.91 Add
009 342L0612 FLANGE BOLT TAPPING £2.58 Add
010 11006-155 STAY C.P £7.63 Add
011 342L0612 FLANGE BOLT TAPPING £2.58 Add
012 11113-407 STAY £3.82 Add
013 342L0612 FLANGE BOLT TAPPING £2.58 Add
014 11113-292 STAY £8.99 Add
015 342L0612 FLANGE BOLT TAPPING £2.58 Add
016 36068-196-46 GUARD £41.46 Add
017 36080-149 RUBBER SHEET £3.56 Add
018 64014-324 SHAFT £5.74 Add
019 68013-336 SPRING £7.63 Add
020 71082-111 FAN ASSY £55.77 Add
021 51125-103 FAN £22.05 Add
022 11102-151 HOLDER £18.75 Add
023 31062-169 PRE-COAT LOCK BOLT £2.47 Add
024 579L0600 FLANGE NUT £1.80 Add
025 61024-208 SPACER £11.08 Add
026 91014-205 BLADE £35.57 Add
027 31057-197 HEXAGON BOLT £3.96 Add
028 31057-243 BOLT £2.73 Add
029 61024-142 SPACER £2.01 Add
030 71067-106 BRAKE ASSY £359.23 Add
031 91097-101 UNIVERSAL JOINT £33.14 Add
032 812V2000 C-SNAP RING FOR SHAFT £1.85 Add
033 717B0418 PARALLEL PIN £2.86 Add
034 71235-104 TORQUE LIMITER ASS'Y £29.44 Add
035 91049-133 CONNECTOR £8.18 Add
036 68036-280 WASHER £2.15 Add
037 816V0800 E-SNAP RING £1.73 Add
038 36065-438 COVER £43.86 Add
041 342L0616 FLANGE BOLT TAPPING £2.58 Add
044 51116-149 HANDLE BRACKET(L) £36.18 Add
047 51116-150 HANDLE BRACKET(R) £36.18 Add
050 31057-255 BOLT £2.49 Add
053 512L0800 HEXAGON NUT £1.73 Add
056 71008-369 GEAR CASE ASSY £502.86 Add
059 733L1000 SNAP PIN £1.81 Add
062 94401-161 50 WOODRUFF KEY (16x1 5) N/A POA
