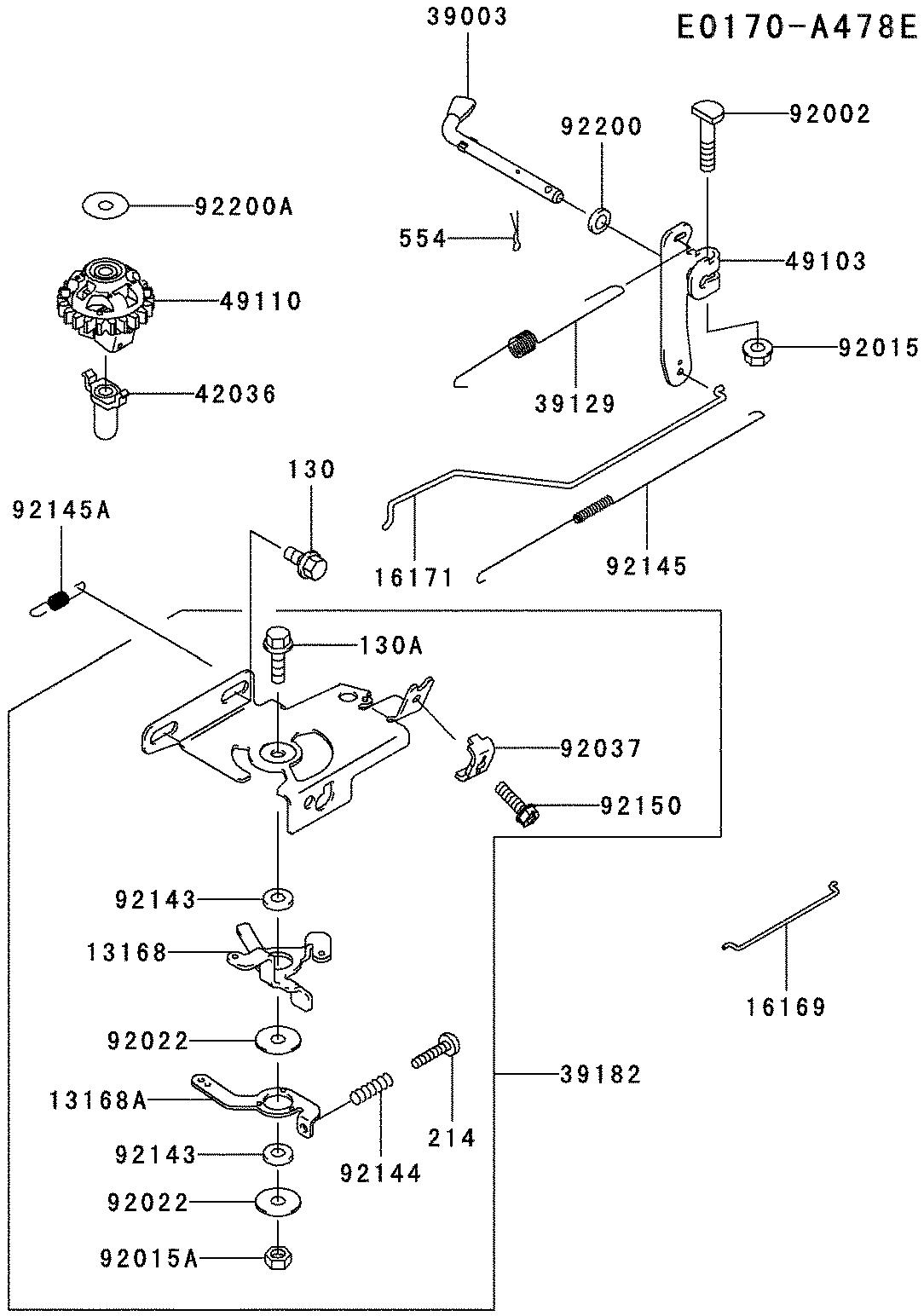

FG752_0106

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
130	130B0612	BOLT-FLANGED,6X12	N/A	POA
130A	130B0618	BOLT-FLANGED,6X18	N/A	POA
13168	13168-7020	LEVER	N/A	POA
13168A	13168-7022	LEVER	N/A	POA
16169	16169-7011	LINK-CHOKE	N/A	POA
16171	16171-7015	LINK,THROTTLE	N/A	POA
214	214B0420	SCREW-PAN+-,4X20	N/A	POA
39003	39003-7002	ARM-PIVOT	N/A	POA
39129	39129-7014	SPRING-GOVERNOR	N/A	POA
39182	39182-7005	PANEL-ASSY-CONTROL	N/A	POA
42036	42036-2051	SLEEVE	N/A	POA
49103	49103-7005	ARM-GOVERNOR	N/A	POA
49110	49110-7002	GOVERNOR-ASSY	N/A	POA
554	554A0600	PIN-SNAP,1.2X21.2	N/A	POA
92002	92002-2269	BOLT,6X28	N/A	POA
92015	92015-1193	NUT	N/A	POA
92015A	92015-2051	NUT	N/A	POA
92022	92022-2372	WASHER,6X19X1.2	N/A	POA
92037	92037-2209	CLAMP	N/A	POA
92143	92143-2135	COLLAR,6X13X2.3	N/A	POA
92144	92144-2266	SPRING	N/A	POA
92145	92145-7025	SPRING,THROTTLE	N/A	POA
92145A	92145-7032	SPRING	N/A	POA
92150	92150-2182	BOLT,5X18	N/A	POA
92200	92200-2029	WASHER,6.5X11.5X2.0	N/A	POA
92200A	92200-2036	WASHER,6.2X20X0.5	N/A	POA
