FG724_0100

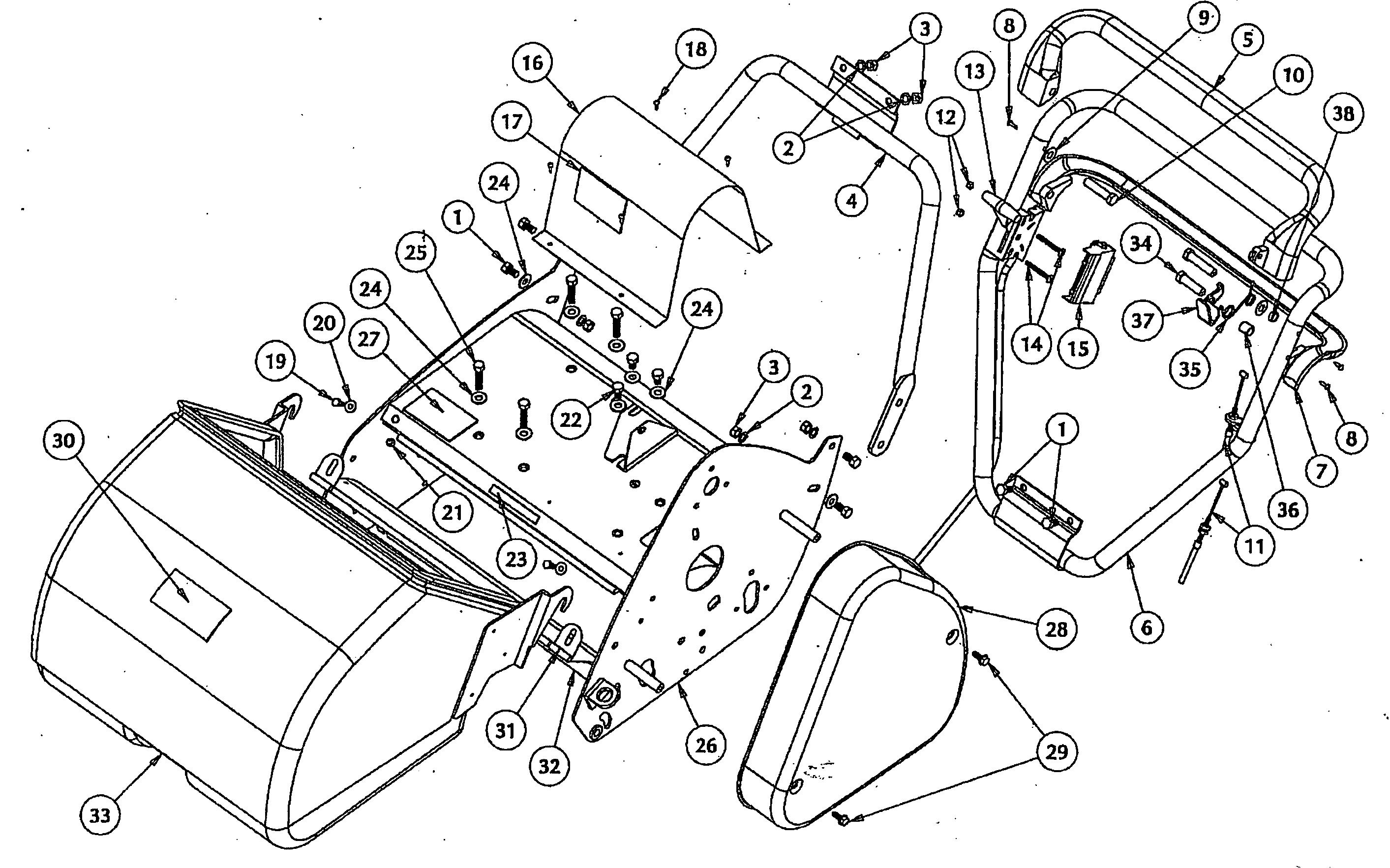

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG724_0100

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FBOPL02 BOLT £3.05 Add
002 FWAPL58 WASHER SPRING ZPM8 N/A POA
003 FNUPL08 NUTZPM8 N/A POA
004 L1450-150 LOWER HANDLE (400) £94.02 Add
005 L1050-720B LEVER CLUTCH REEL £47.62 Add
006 L1050-705C UPPER HANDLE £170.54 Add
007 L1050-730B NO LONGER AVAILABLE N/A POA
008 L0108-027 NO LONGER AVAILABLE N/A POA
009 L1050-715 WASHER PLASTIC £5.31 Add
010 L1050-710Z PIVOT LEVER BOSS £12.59 Add
011 L1050-700 NO LONGER AVAILABLE N/A POA
012 FNLPL05 NUT NYLOC ZP M5 N/A POA
013 L1050-090 THROTTLE CONTROL (OBSOLETE) (OBSOLETE) N/A POA
014 FSCPL05 SCREW MC ZP PHD POZI M5 X 40 N/A POA
015 L1050-095 THROTTLE COVER £12.59 Add
016 L1410-700O COVER-SHAFT 400 ORANGE N/A POA
016 L1410-700S COVER-SHAFT 400 SILVER N/A POA
016 L1410-700R COVER-SHAFT 400 RED N/A POA
017 L1470-145 DECAL MOWER TD L/M 400 N/A POA
018 FSCPL08 SCREW £3.70 Add
019 FBOPL03 BOLTZPM6X12SET SCREW N/A POA
020 FWAPL56 SPRING WASHER £2.98 Add
021 FNUPL06 NUT £2.98 Add
022 FBOPL18 BOLT £4.18 Add
023 L1070-234 DECAL-RAZOR CUT SYSTEM N/A POA
024 FWAPL08 WASHER FLAT ZP M8X19X1.6 N/A POA
025 FBOPL35 BOLT £7.49 Add
026 L1405-710O FRAME-400 W/A ORANGE N/A POA
026 L1405-710S FRAME-400 W/A SILVER N/A POA
026 L1405-710R FRAME (RED 400) £254.07 Add
027 L1070-230 CAUTION DECAL £12.59 Add
028 L1010-705O GUARD-CHAIN ORANGE N/A POA
028 L1010-705S GUARD-CHAIN SILVER N/A POA
028 L1010-705R NO LONGER AVAILABLE N/A POA
029 L0108-030 SCREW £6.03 Add
030 L1470-145 DECAL MOWER TD L/M 400 N/A POA
031 L1010-190 Grass thrower tab £15.12 Add
032 L1410-210 GRASS THROWER 400 ORANGE N/A POA
032 L1410-215 GRASS THROWER £83.41 Add
032 L1410-195R GRASS THROWER (400 RED) £59.79 Add
033 L1465-242 CATCHER 400 ORANGE N/A POA
033 L1465-260 CATCHER (400 BLACK) £305.56 Add
034 L1050-712Z PIVOT SAFETY CATCH BOSS £12.59 Add
035 L1050-709 LEVER LOCK SPRING £4.63 Add
036 L1050-707 LEVER LOCK SPACER £6.32 Add
037 L1050-706 LEVER LOCK £12.59 Add
038 L1050-717Z SPACER PIVOT LEVER £6.32 Add
