FG768_0102

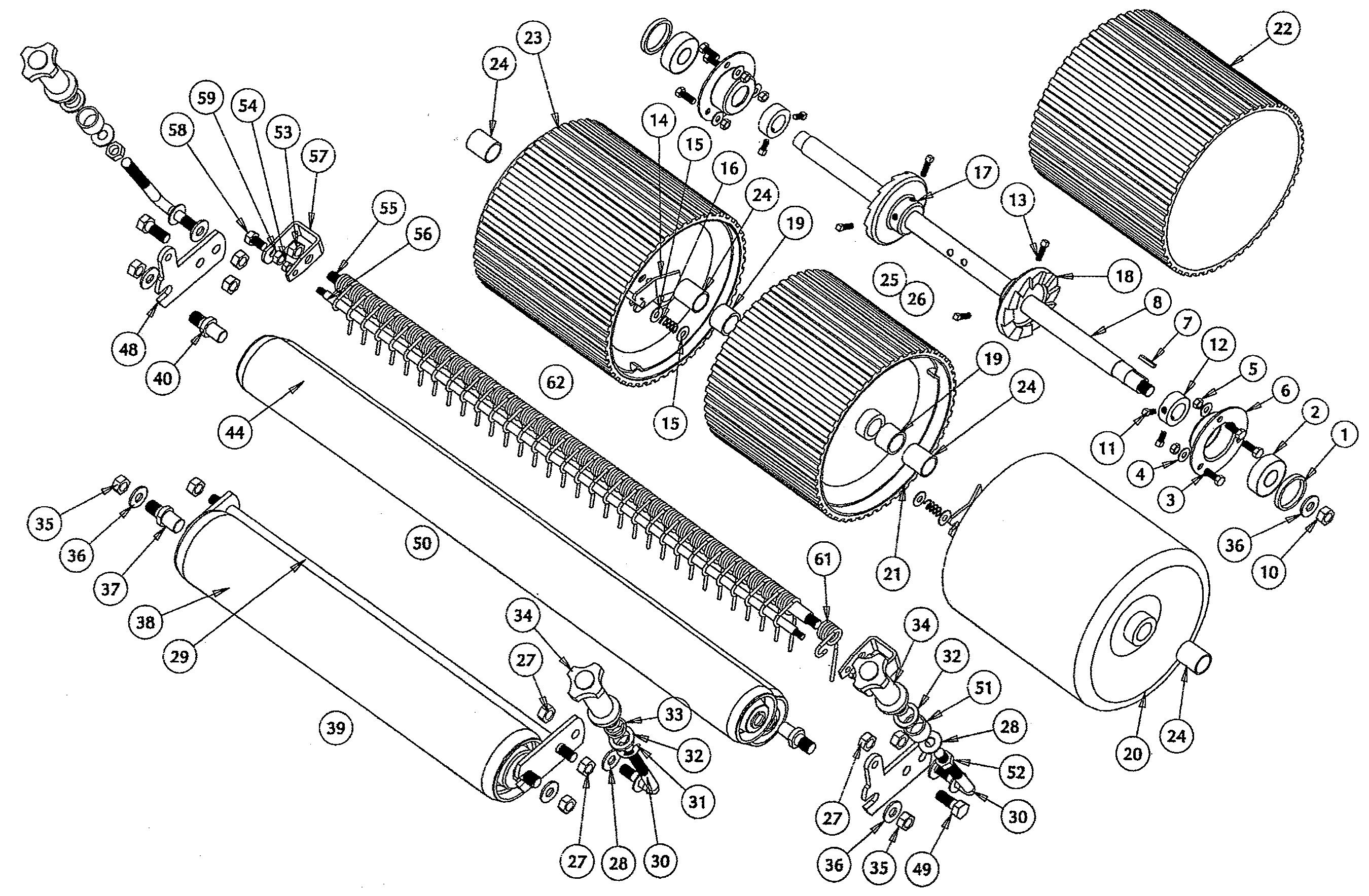

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	L1060-120	NO LONGER AVAILABLE	N/A	POA
002	FBRL080	NO LONGER AVAILABLE	N/A	POA
002	F8RL070	BEARING 6203 Z	N/A	POA
003	FBOPL01	BOLT	£2.98	Add
004	FWAPL56	SPRING WASHER	£2.98	Add
005	FNUPL06	NUT	£2.98	Add
006	L1060-145	BEARING HOUSING	£34.85	Add
007	L1030-170	ROLLER DRIVE KEY	£6.74	Add
008	L1430-350	BACK ROLLER SHAFT 400	£85.40	Add
010	L0110-013	NUT	£4.16	Add
011	L0107-041	SCREW CUP POINT	£5.87	Add
012	L1030-230	BACK ROLLER LOCKING COLLAR	£22.37	Add
013	L0107-041	SCREW CUP POINT	£5.87	Add
014	L1030-290	BACK ROLLER PAWL	£16.44	Add
015	L0115-040	NO LONGER AVAILABLE	N/A	POA
016	L1030-270	spring two only left now obsolete	N/A	POA
017	L1030-250	BACK ROLLER RATCHET RH	£57.74	Add
018	L1030-245	BACK ROLLER RATCHET LH	£57.74	Add
020	L1430-330	BACK ROLLER DRUM (400)	£193.16	Add
020	LI 730-330	DRUM BR ASSY GOLF PAINTED	N/A	POA
020	L1530-330	BACK ROLLER DRUM (500)	£244.83	Add
021	L1630-305	CENTRE DRUM (660)	£137.56	Add
022	L1230-180	SLEEVE RUBBER BACK ROLLER	N/A	POA
023	L1230-302	DRUM ASSY 400 RUBBER B/R	N/A	POA
023	L1230-320	DRUM ASSY 500/660 RUBBER B/R	N/A	POA
023	L1230-305	DRUM ASSY 660 CTR RUBBER B/R	N/A	POA
024	L1730-190	SINTERED BUSH	£34.74	Add
025	L1430-450	BACK ROLLER ASSY (400)	£536.24	Add
026	L1230-360	ROLLER BACK ASSY RUBBER 400	N/A	POA
027	FNLPL10	NUT NYLOC ZP M10	N/A	POA
028	FWAPL10	WASHER FLAT ZP M10X21X1.6	N/A	POA
029	L1445-300	FRONT ROLLER BRKT ASSY (400)	£69.88	Add
030	L1045-230	STUD FRONT ROLLER ASSY	£22.96	Add
031	L0135-025	E CLIP	£4.63	Add
032	L0115-016	WASHER	£3.70	Add
033	L1045-220	FRONT ROLLER ADJ SPRING	£4.74	Add
034	L1045-240	NO LONGER AVAILABLE	N/A	POA
035	FNLPL12	NUT	£2.89	Add
036	FWAPL28	FLAT WASHER	£3.83	Add
037	L1045-300	STUB SHAFT-STEEL FRONT ROLLER	£17.58	Add
038	L1445-405	ROLLER (400)	£105.18	Add
039	L1445-420	ROLLER FRONT ASSY-STEEL M400	£113.26	Add
040	L1045-301	ROLLER PIN	£15.06	Add
049	FBOPL93	BOLT HT ZP M10X25	N/A	POA
050	L1745-405	ROLLER FRONT ASSY-STEEL GOLF L1745-420 (OBSOLETE) (OBSOLETE)	N/A	POA
051	L1745-215	SPACER HANDWHEEL ROLLER ZP	N/A	POA
052	FNUPL10	NUT ZP M10	N/A	POA
053	L0111-046	NYLOC NUT	£2.79	Add
054	FNLPL06	NYLOC NUT	£4.92	Add
057	L1745-105	TURF RAKE BRKT	£41.02	Add
058	FBOPL18	BOLT	£4.18	Add
059	FNLPL08	NUTNYLOCZPM8	N/A	POA
061	L1745-120	TURF RAKE TYNE	£6.94	Add
062	L1145-150	COMPLETE RAKE ASSY	£204.52	Add
062	L1745-150	TURF RAKE ASSY (GOLF)	£214.57	Add
