FG768_0107

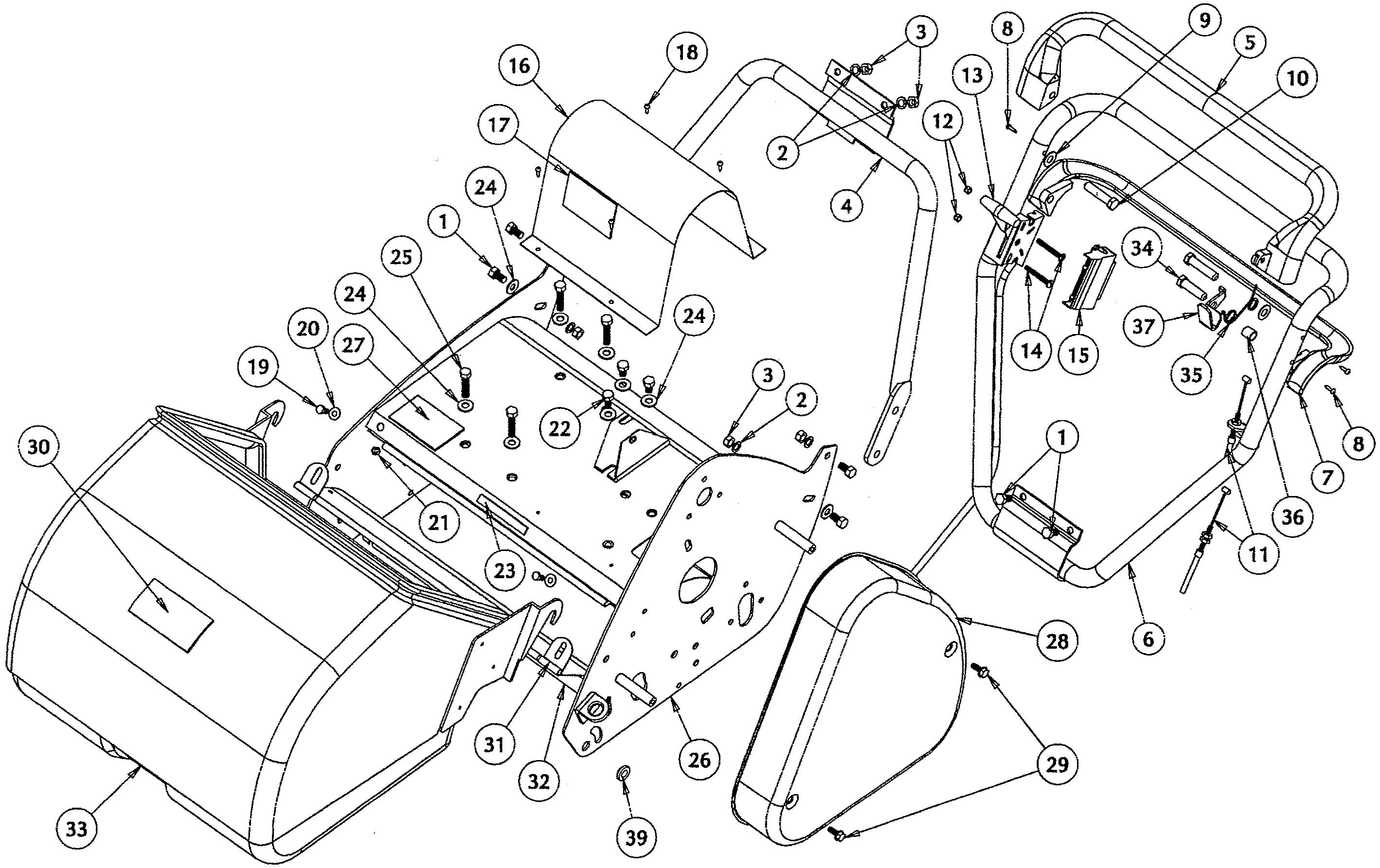

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FBOPL02	BOLT	£3.05	Add
002	FWAPL58	WASHER SPRING ZPM8	N/A	POA
003	FNUPL08	NUTZPM8	N/A	POA
004	L1550-150	NO LONGER AVAILABLE	N/A	POA
004	L1260-450Y	LOWER 500 EXT YELLOW	N/A	POA
005	L1050-720B	LEVER CLUTCH REEL	£47.62	Add
006	L1050-705C	UPPER HANDLE	£170.54	Add
006	L1050-755	HANDLE-UPPER OPC YELLOW ASSY	N/A	POA
007	L1050-730B	NO LONGER AVAILABLE	N/A	POA
008	L0108-027	NO LONGER AVAILABLE	N/A	POA
009	L1050-715	WASHER PLASTIC	£5.31	Add
010	L1050-710Z	PIVOT LEVER BOSS	£12.59	Add
011	L1050-700	NO LONGER AVAILABLE	N/A	POA
012	FNLPL05	NUT NYLOC ZP M5	N/A	POA
013	L1050-090	THROTTLE CONTROL (OBSOLETE) (OBSOLETE)	N/A	POA
014	FSCPL05	SCREW MC ZP PHD POZI M5 X 40	N/A	POA
015	L1050-095	THROTTLE COVER	£12.59	Add
016	L1510-700S	COVER-SHAFT 500/660 SILVER	N/A	POA
016	L1510-700G	COVER-SHAFT 500/660 PRI GREEN	N/A	POA
016	L1510-700R	SHAFT COVER (500/660 RED)	£96.11	Add
016	L1510-700M	COVER-SHAFT 500/660 RACING GRN	N/A	POA
017	L1570-145	DECAL	£15.36	Add
017	L1570-146	DECAL MOWER TD L/M 500 BLACK	N/A	POA
018	FSCPL08	SCREW	£3.70	Add
019	FBOPL03	BOLTZPM6X12SET SCREW	N/A	POA
020	FWAPL56	SPRING WASHER	£2.98	Add
021	FNUPL06	NUT	£2.98	Add
022	FBOPL18	BOLT	£4.18	Add
023	L1070-234	DECAL-RAZOR CUT SYSTEM	N/A	POA
024	FWAPL08	WASHER FLAT ZP M8X19X1.6	N/A	POA
025	FBOPL35	BOLT	£7.49	Add
026	L1505-710S	FRAME-500 W/A SILVER	N/A	POA
026	L1505-710G	FRAME-500 W/A PRIMARY GREEN	N/A	POA
026	L1505-710R	FRAME (RED 500)	£316.26	Add
026	L1505-710M	FRAME-500 W/A RACING GREEN	N/A	POA
026	L1705-710G	FRAME M500 GOLF MTD GREEN	N/A	POA
026	L1705-710S	FRAME-M500 GOLF SILVER	N/A	POA
026	L1605-710S	FRAME-660/C W/A SILVER	N/A	POA
026	L1605-710R	FRAME (RED 600)	£316.26	Add
026	L1605-710M	FRAME-660/C W/A RACING GREEN	N/A	POA
026	L1105-710S	FRAME - SPORT W/A PTD SILVER	N/A	POA
026	L1105-710M	FRAME - SPORT W/A PTD MASPORT	N/A	POA
027	L1070-230	CAUTION DECAL	£12.59	Add
028	L1010-705S	GUARD-CHAIN SILVER	N/A	POA
028	L1010-705R	NO LONGER AVAILABLE	N/A	POA
028	L1010-705G	GUARD-CHAIN PRIMARY GREEN	N/A	POA
028	L1010-705M	GUARD-CHAIN RACING GREEN	N/A	POA
029	L0108-030	SCREW	£6.03	Add
030	L1470-145	DECAL MOWER TD L/M 400	N/A	POA
030	L1470-147	DECAL CATCHER 400 WHITE	N/A	POA
030	L1570-145	DECAL	£15.36	Add
030	L1570-147	DECAL CATCHER 500 WHITE	N/A	POA
030	L1670-145	DECAL MOWER TD L/M 660	N/A	POA
030	L1670-147	DECAL CATCHER 660C WHITE	N/A	POA
031	L1010-190	Grass thrower tab	£15.12	Add
032	L1410-195R	GRASS THROWER (400 RED)	£59.79	Add
032	L1410-205	GRASS THROWER 400 RACING GREEN	N/A	POA
032	L1410-215	GRASS THROWER	£83.41	Add
032	L1410-220	GRASS THROWER 400 PRIMARY GRN	N/A	POA
032	L1510-205	GRASS THROWER 500 RACING GREEN	N/A	POA
032	L1510-195R	GRASS THROWER 500 SILVER L1510-215 (OBSOLETE) (OBSOLETE)	N/A	POA
032	L1510-220	GRASS THROWER 500 PRIMARY GRN	N/A	POA
032	L1510-195R	GRASS THROWER 500 SILVER L1510-215 (OBSOLETE) (OBSOLETE)	N/A	POA
032	L1610-195R	GRASS THROWER 660 RED (OBSOLETE) (OBSOLETE)	N/A	POA
032	L1610-195S	NO LONGER AVAILABLE	N/A	POA
032	L1610-205	GRASS THROWER 660 RACING GREEN (OBSOLETE)	N/A	POA
033	L1465-260	CATCHER (400 BLACK)	£305.56	Add
033	L1565-250	CATCHER (500 BLACK)	£393.70	Add
033	L1665-200B	CATCHER (BLACK 660)	£418.37	Add
034	L1050-712Z	PIVOT SAFETY CATCH BOSS	£12.59	Add
035	L1050-709	LEVER LOCK SPRING	£4.63	Add
036	L1050-707	LEVER LOCK SPACER	£6.32	Add
037	L1050-706	LEVER LOCK	£12.59	Add
039	L1005-178	WASHER KEEPER SIDE PLATE (OBSOLETE)	N/A	POA
