FG768_0109

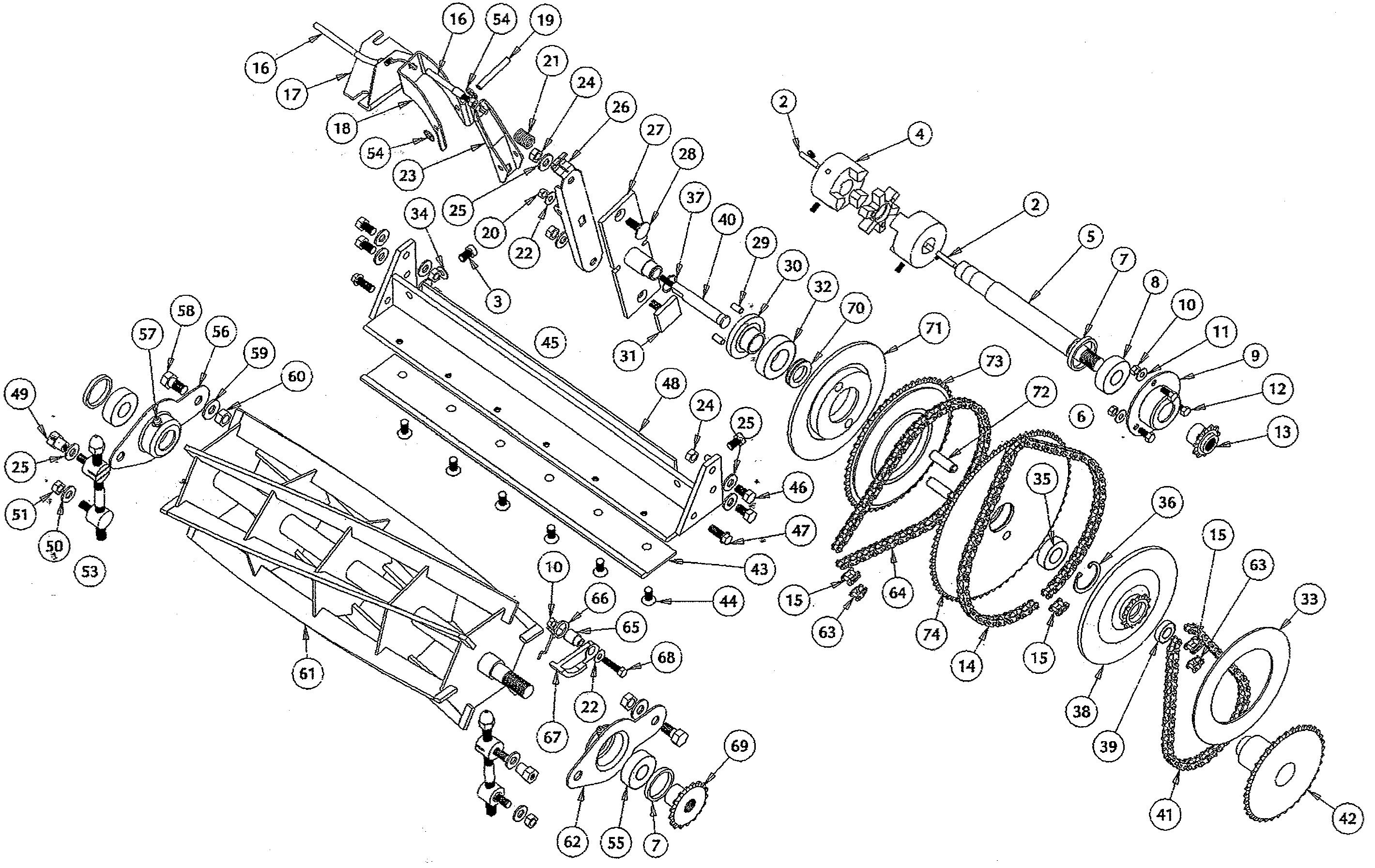

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
0/4	L1020-800	SPROCKET 66T	£206.58	Add
001	L1020-785B	BRACKET	£57.19	Add
002	L1015-385	KEY	£7.89	Add
003	FSCPL55	SCREW SKT HD SS 5/16X1/2 UNC	N/A	POA
004	L1015-700	NO LONGER AVAILABLE	N/A	POA
004	L1015-705	COUPLING	£155.49	Add
006	L1515-715	BAR-DRIVE ASSY 500/660 5/8"	N/A	POA
007	L1060-120	NO LONGER AVAILABLE	N/A	POA
008	FBRL080	NO LONGER AVAILABLE	N/A	POA
009	L1060-145	BEARING HOUSING	£34.85	Add
010	FNUPL06	NUT	£2.98	Add
011	FWAPL56	SPRING WASHER	£2.98	Add
012	FBOPL01	BOLT	£2.98	Add
013	L1020-741	MOTOR SPROCKET 10 TEETH	£53.28	Add
014	L1025-725	NO LONGER AVAILABLE	N/A	POA
015	L1025-490	LINK	£10.63	Add
016	L1050-700	NO LONGER AVAILABLE	N/A	POA
018	L1020-710Z	CLUTCH BRACKET	£13.15	Add
019	L1020-770Z	PIN	£6.23	Add
020	FNLPL06	NYLOC NUT	£4.92	Add
021	L1220-395	SPRING	£8.22	Add
022	FWAPL06	FLAT WASHER	£3.87	Add
023	L1020-700Z	LEVER CLUTCH ROLLER	£27.60	Add
024	FNUPL08	NUTZPM8	N/A	POA
025	FWAPL58	WASHER SPRING ZPM8	N/A	POA
026	L1020-705Z	BRACKET CLUTCH ROLLER	£24.94	Add
027	L1020-720	NO LONGER AVAILABLE	N/A	POA
028	FBOPL21	BOLT	£4.49	Add
029	L1020-726	CLUTCH THRUST PIN	£8.38	Add
030	L1020-727	BLOCK	£40.33	Add
031	L1020-765	PLATE	£9.21	Add
032	FBRL130	BEARING	£39.89	Add
033	L1020-760	NO LONGER AVAILABLE	N/A	POA
034	FWAPL09	WASHER FLAT SS M8X19X1.6	N/A	POA
035	FBRL120	BEARING	£25.97	Add
036	L0135-064	CIRCLIP (OBSOLETE) (OBSOLETE)	N/A	POA
037	L0135-063	NO LONGER AVAILABLE	N/A	POA
038	L1020-730	CLUTCH PLATE (OBSOLETE) (OBSOLETE)	N/A	POA
039	FBRL110	BEARING (OBSOLETE)	N/A	POA
040	L1020-715	NO LONGER AVAILABLE	N/A	POA
041	L1025-716	CHAIN	£36.30	Add
042	L1020-753	SPROCKET 39T	£81.73	Add
043	L1640-295	NO LONGER AVAILABLE	N/A	POA
043	L1740-295	SHAVER BLADE TD500H	£133.40	Add
043	L1640-295	NO LONGER AVAILABLE	N/A	POA
044	FSCPL41	SCREW	£5.04	Add
045	L1640-460	BLADE BOTTOM ASSY-660 FLAT	£339.93	Add
045	L1740-450	BOTTOM BLADE CARRIER	£183.74	Add
045	L1640-460	BLADE BOTTOM ASSY-660 FLAT	£339.93	Add
046	FBOPL02	BOLT	£3.05	Add
047	L0108-039	SCREW	£6.39	Add
048	L1640-390	BOTTOM BLADE CARRIER 660	£166.31	Add
049	L1035-240	CATCHER STUD	£5.31	Add
050	FWAPL08	WASHER FLAT ZP M8X19X1.6	N/A	POA
051	FNLPL08	NUTNYLOCZPM8	N/A	POA
053	L1035-290	NO LONGER AVAILABLE	N/A	POA
054	L0135-015	PUSH ON FIX	£2.79	Add
055	FBRL080	NO LONGER AVAILABLE	N/A	POA
056	L1035-220	HOUSING REEL BEARING RH BLACK L1035-215	N/A	POA
057	L1060-110	NIPPLE	£5.01	Add
058	L1035-230	PIVOT BOLT	£6.53	Add
059	L1035-200	WASHER	£2.91	Add
060	FNLPL45	NUT NYLOC ZP 3/8 UNF	N/A	POA
061	L1635-400	REEL COMPLETE 660	£490.72	Add
061	L1135-400	CYLINDER 10 BLADE	£615.57	Add
062	L1035-210	HOUSING REEL BEARING LH BLACK L1035-205	£42.49	Add
063	L1025-480	NO LONGER AVAILABLE	N/A	POA
064	L1025-720	NO LONGER AVAILABLE	N/A	POA
065	L1025-700	CHAIN TENSION BOSS	£9.21	Add
066	L1025-705	NO LONGER AVAILABLE	N/A	POA
067	L1025-710	CHAIN TENSION SHOE	£12.59	Add
068	FBOPL09	BOLT ZP M6X30 SET SCREW	N/A	POA
069	L1020-755	SPROCKET 17 TEETH	£89.55	Add
070	L1020-762	washer	£4.28	Add
071	L1020-810	DRIVE PLATE	£108.76	Add
072	L1020-739	ROLL PIN	£8.10	Add
073	L1020-744	SPROCKET 51T	£108.57	Add
