FG493_0010

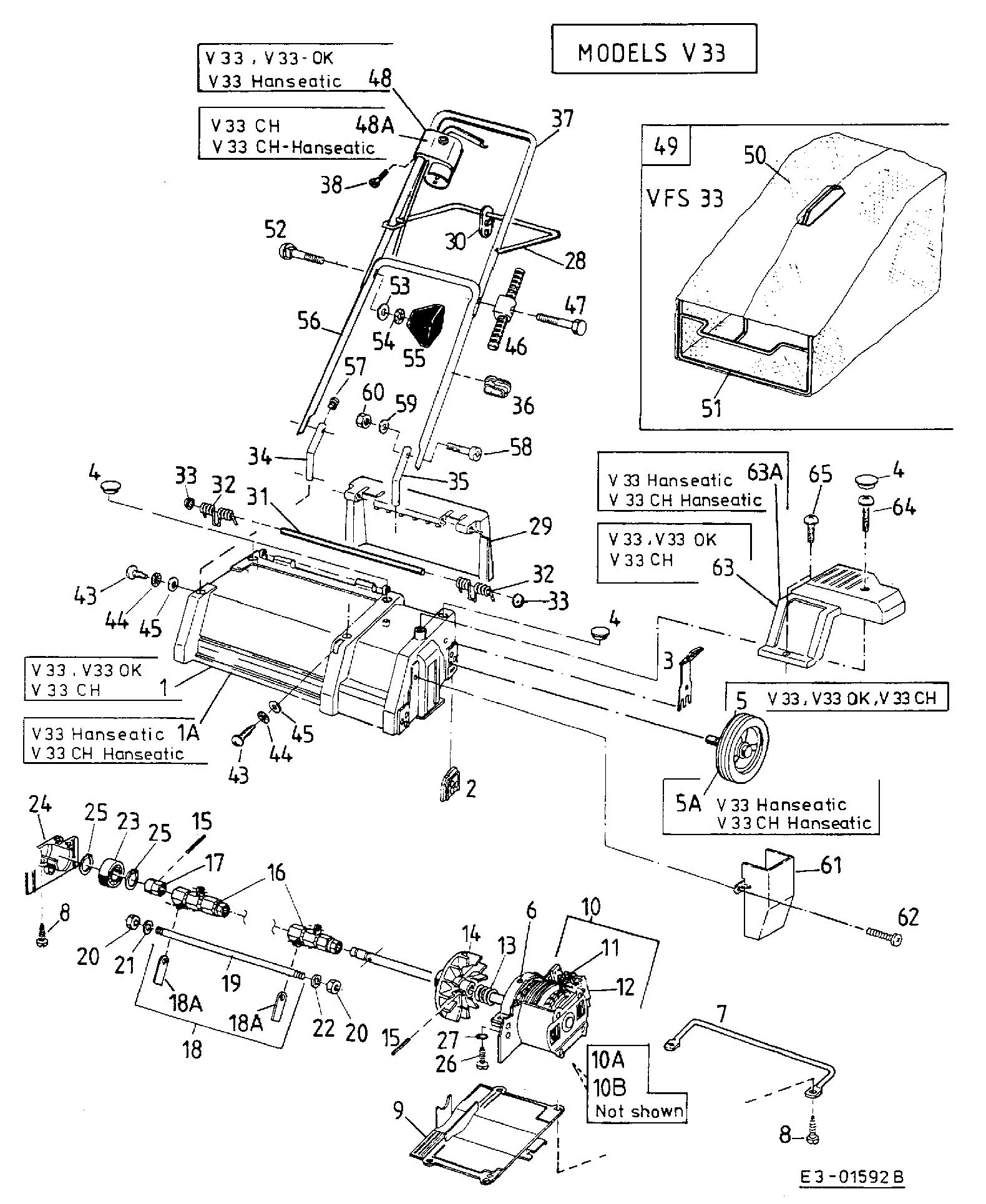

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	079.85.301	HOUSING	£82.79	Add
002	079.85.213	BEARING REINFORCEMENT (RED)	£10.32	Add
003	079.29.490-Z	VERSTELLHEBEL HINTEN VERZINKT	£15.09	Add
004	000.70.557	CAP	£3.82	Add
005	079.31.973	WHEEL (RED)	£19.77	Add
006	079.11.303	AIR GUIDE PLATE	£33.83	Add
007	079.85.218	STABILIZATION ROD	£16.55	Add
008	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add
009	079.85.318	COVER	£39.64	Add
010	079.11.691	ELECTRIC MOTOR	£205.38	Add
011	079.11.890	CONDENSER	£39.97	Add
012	079.38.126	INSULATING PIECE	£13.44	Add
013	000.30.275	SPRING	£16.05	Add
014	079.85.200	NO LONGER AVAILABLE	N/A	POA
015	25.3197.95	Pin	£5.10	Add
016	079.85.231	DRIVE SLEEVE (RED)	£9.01	Add
017	079.85.176	HUB	£13.85	Add
018	2890.04	NO LONGER AVAILABLE	N/A	POA
019	079.85.205	SHAFT	£8.01	Add
01A	731-1973718	MINZGRÜN RAL 6029 ABS	£58.67	Add
020	712-0691	HEX NUT M6 DIN 985	£2.66	Add
021	24.6273.15	NO LONGER AVAILABLE	N/A	POA
022	24.6273.16	ADJUSTING WASHER	£4.00	Add
023	26.1027.43	Ball bearing	£26.36	Add
024	079.85.193	BUSHING	£8.62	Add
025	28.3591.17	Retaining ring	£4.42	Add
026	000.02.494	SCREW	£4.50	Add
027	736-0688	WASH:FLAT:6x10x1.2	£2.93	Add
028	747-1033	ROD	£15.67	Add
029	079.85.324	REAR FLAP	£22.29	Add
030	726-0368637	RET:CORD:ELECTRIC	£8.32	Add
031	079.85.206	ROD	£14.27	Add
032	000.31.166	SPRING	£13.99	Add
033	000.02.427	ADJUSTING RING	£3.34	Add
034	749-1340	Handle tube right 079.06.261	£18.28	Add
035	749-1340	Handle tube right 079.06.261	£18.28	Add
036	000.13.064	CABLE CLAMP	£5.81	Add
037	749-1140	UPPER HANDLE	£36.30	Add
038	710-1757	NO LONGER AVAILABLE	N/A	POA
043	710-1717	33E-SCREW (RED)	£5.04	Add
044	736-0698	Spring washer 24.8191.09	£4.11	Add
045	736-0697	Washer 24.6486.13	£2.79	Add
046	079.05.304	CABLE PROTECTION	£7.13	Add
047	710-1684	NO LONGER AVAILABLE	N/A	POA
048	725-1867	SSK TYP CCS 59 L1=1450 mm	£44.71	Add
049	196-041-678	NO LONGER AVAILABLE	N/A	POA
050	079.80.841	GRASS CATCHER	£77.76	Add
051	079.80.836	FRAME	£50.02	Add
052	710-1375	SCREW	£3.69	Add
053	736-0700	FLAT WASHER	£2.63	Add
054	736-0689	L-WASHER	£3.26	Add
055	720-0368	WING NUT	£5.19	Add
056	079.06.260	HANDLE LOWER PART (RED)	£28.49	Add
057	720-0369	Plug 000.34.303	£5.91	Add
058	23.5422.20	NO LONGER AVAILABLE	N/A	POA
059	736-0668	WASHER	£2.23	Add
05A	079.31.973	WHEEL (RED)	£19.77	Add
060	712-0691	HEX NUT M6 DIN 985	£2.66	Add
061	079.85.224	AIR GUIDE	£13.30	Add
062	000.02.583	SCREW	£3.80	Add
063	731-2125638	COVER	£41.83	Add
064	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add
065	000.02.583	SCREW	£3.80	Add
10A	001.10.125	CLAMP (RED)	£9.71	Add
10B	710-1717	33E-SCREW (RED)	£5.04	Add
18A	742-0813-Z	NO LONGER AVAILABLE	N/A	POA
48A	725-1886	SSK CCS 59 - CH - L1=1450 Ò20	£72.90	Add
63A	731-2125718	HOOD	£21.27	Add
