FG481_0010

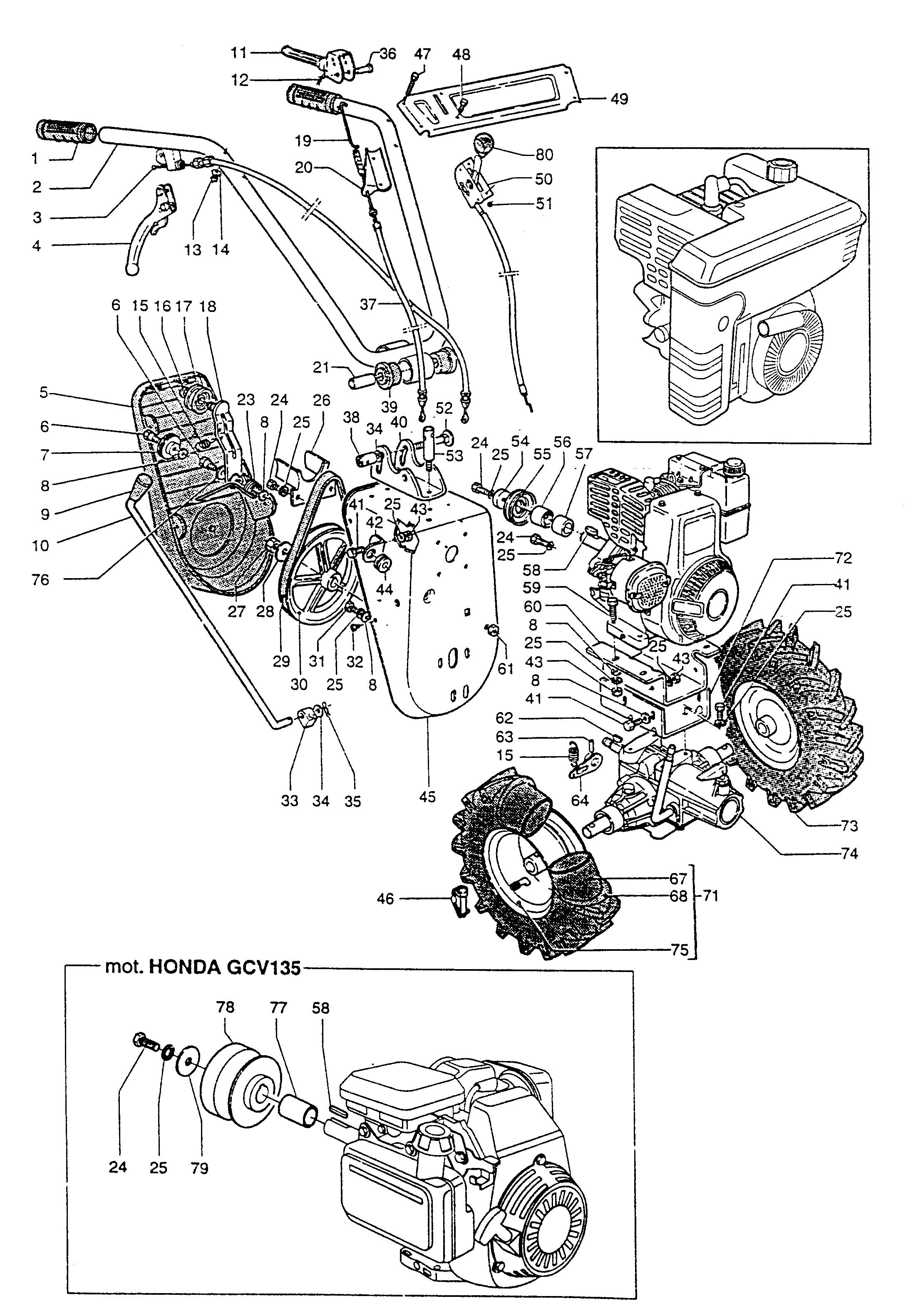

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	10 5000 33	HANDLE GRIP (RED)	£4.49	Add
002	10 1285 20	HANDLE	N/A	POA
003	531204297	BRAKE CABLE 531204429	£57.38	Add
004	5312081325	HANDLE 20 1285 80	£13.98	Add
005	531 20 53-93	PROTECTION GUARD 10 1283 93	£27.33	Add
006	10 8268 00	SCREW	N/A	POA
007	10 1285 43	PULLEY	N/A	POA
008	10 1142 00	WASHER	N/A	POA
009	10 1284 23	KNOB	N/A	POA
010	10 1284 50	LEVER	£35.71	Add
011	531205422	NO LONGER AVAILABLE	N/A	POA
012	10 6513 00	COTTER PIN	N/A	POA
013	20 2818 00	NUT	N/A	POA
014	10 1159 00	WASHER	N/A	POA
015	10 1290 60	SPRING	N/A	POA
016	20 6558 00	SEEGER	N/A	POA
017	531204430	PULLEY	£25.20	Add
018	10 1285 00	LEVER (RED)	£21.28	Add
019	10 1294 00	CLUTCH LEVER TIE ROD	£4.49	Add
020	20 6593 00	CABLE BEARING	£27.25	Add
021	10 1285 30	SPACER	N/A	POA
023	10 1285 10	SPRING	N/A	POA
024	10 6543 00	SCREW	N/A	POA
025	20 1062 00	WASHER	N/A	POA
026	10 1282 30	BELT SLIDE	N/A	POA
027	10 1282 20	NUT	£2.14	Add
028	10 1282 10	NO LONGER AVAILABLE	N/A	POA
029	531205384	one left the obsolete	£32.76	Add
030	10 1282 00	PULLEY	N/A	POA
031	20 3823 00	SCREW	£2.17	Add
032	10 8307 00	SCREW	N/A	POA
033	531205409	JOINT (OBSOLETE)	N/A	POA
034	10 4289 00	WASHER (RED) (OBSOLETE)	N/A	POA
035	10 2814 00	COTTEL PIN (RED) (OBSOLETE)	N/A	POA
036	10 6514 00	PIN	£8.43	Add
037	531204296	NO LONGER AVAILABLE	N/A	POA
038	531205390	BARREL NUT	£17.63	Add
039	10 1285 73	SHOCK ABSORBER	N/A	POA
040	10 1283 80	HANDLE BEARING	N/A	POA
041	20 1038 00	CREW	N/A	POA
042	10 1284 30	BEARING	N/A	POA
043	20 1063 00	NUT	N/A	POA
044	10 1284 43	WASHER	N/A	POA
045	10 1286 00	DECK	N/A	POA
046	531205271	PIN	£8.18	Add
047	10 6552 00	SCREW	N/A	POA
048	10 5473 00	SCREW	N/A	POA
049	10 6797 03	DASH-BOARD	N/A	POA
050	531207615	NO LONGER AVAILABLE	N/A	POA
051	20 5013 80	NUT	N/A	POA
052	531205394	BOLT	£21.33	Add
053	531205389	PIN	£18.22	Add
054	10 6610 00	METAL RING	N/A	POA
055	10 6607 00	PULLEY	N/A	POA
056	10 6608 00	BUSH	N/A	POA
057	10 6609 00	SPACER	N/A	POA
058	10 6545 00	KEY	N/A	POA
059	10 1217 00	SCREW	N/A	POA
060	10 1290 43	SUP.BEARING	N/A	POA
061	20 4049 00	NUT	£2.21	Add
062	20 1229 60	NO LONGER AVAILABLE	N/A	POA
063	10 2316 00	RESILIENT PIN	N/A	POA
064	10 1281 50	LEVER	N/A	POA
067	20 1287 70	NNER TUBE	£44.22	Add
068	20 1287 63	TYRE	£74.17	Add
071	10 1288 04	RIGHT WHEEL	N/A	POA
072	10 1290 53	BEARING	N/A	POA
073	10 1288 14	WHEEL ASSY	£150.65	Add
074	09 1280 10	GEAR REDUCTION UNIT COMPLETE	£725.00	Add
075	20 1293 54	RIM	£88.50	Add
076	10 6024 00	WASHER	N/A	POA
077	10 6721 00	SPACER HONDA (RED)	£5.91	Add
078	10 6570 00	PULLEY FOR HONDA (RED)	£22.26	Add
079	10 1353 80	WASHER HONDA (RED)	£9.22	Add
080	10 3034 03	KNOB	£10.17	Add
